Apollolift Lead acid Battery 4-wheel Electric Forklift 6600lbs Cap. 197" Lifting A-4014
by Apollolift
Original price
$0
Original price
$36,999.00
-
Original price
$36,999.00
Original price
Current price
$36,999.00
$36,999.00
-
$36,999.00
Current price
$36,999.00
For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com
FEATURES
- Load Capacity 6600 lbs
- Raised Height 197"
- Side Shifting Forks
- Fork Length 42“
- Hydraulic Steering
- Battery 80V/400AH
- Solid Cushion Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 80V/60A(built-out)
SPECIFICATIONS
| Model NO: | A-4014 |
| Operator Type: | Seated |
| Load Capacity | 6,600 lbs |
| Max. Lifting Height (Fork) | 197" |
| Load center | 19.7" |
| Cabin Height | 85" |
| Battery Type | Lead acid |
| Battery Capacity | 80V/400AH |
| Charger ( Input 3phase) | 80V/60A built-out |
| Tires Type | Solid |

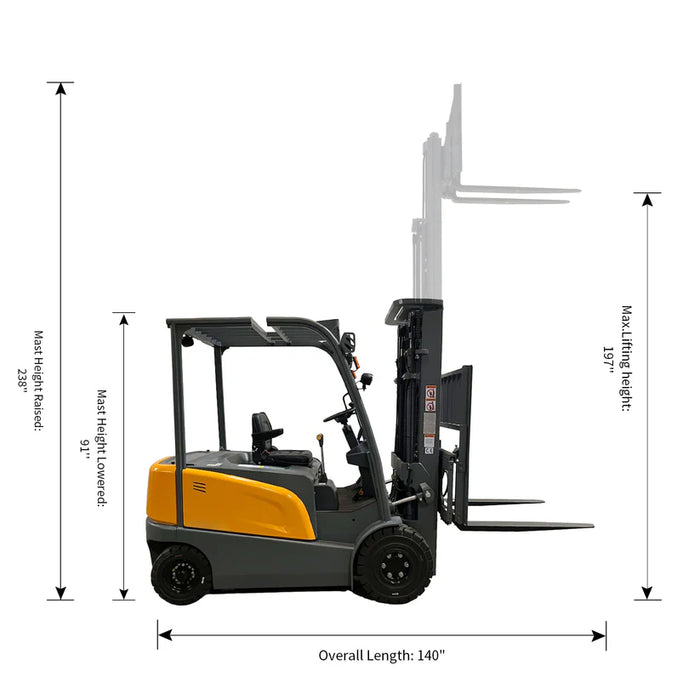

| Overall Length | 140" |
| Overall width | 51.5" |
| Recommended Aisle Width | 161.5" |
| Turning Radius | 89.8" |
| Mast Height Lowered | 91'' |
| Mast Height Raised | 238" |
| Free Lifting height (with / without backrest) | 43" / 65" |
| Mast Tilt Degree (forward/backward) | 5° /6 ° |
| Fork Dimension (Thickness/Width/Length) | 1.8" /4.9" /42" |
| Side Shifter | Left and right reach distance 4'' |
| Travel Speed(laden/unladen) | 7.5 / 8.1mph |
| Lifting Speed(laden/unladen) | 9.8 / 13.8 inch/s |
| Lowering Speed(laden/unladen) | 15.7/ 15.7 inch/s |
| Temperature range of working environment | 50˚F ˜ 104˚F |
