Senty Air Systems Improves Air Quality With High-Efficiency Filtration & Versatile Solutions

The Source Capture Mist Collectors offer a compact and powerful solution to filter oil mist, water mist or coolant mist produced from industrial processes. This line of units mounts to the machinery to capture the oil from the source. Commonly these units are used for CNC mist elimination but can also be used for air filtration on other machines that produce oil, water or coolant mist. These unique and simple units provide ease of installation due to no external exhaust or ducting is required for air output. The source capture mist collectors features quiet operation, energy efficiency and minimal maintenance.

Source capture mist collectors filter the air through a three filter system: cleanable mist pre-filter, carbon pre-filter and main filter with customizable options. The unique washable mist pre-filter collects mist and drains the oil back into the system for repurposing, depending on the application. The carbon pre-filter acts as a MERV 7 layer that protects the HEPA filter. The main filter is available as a ASHRAE, HEPA, or ULPA filter.

Features and Benefits

Washable mist pre-filter
Reliable, low maintenance system
Quiet operation
Low power consumption
Small footprint
Long filter life
Portable and lightweight (Models 200 & 300 only)
Simple, quick, “no tool” filter change
Main filter media made of all flame retardant materials

Available Filters

HEPA Filter

Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter

Up to 95% efficient on particles down to 0.5 microns
ULPA Filter

Up to 99.9995% efficient on particles down to 0.12 microns

Brochure (Specs)

300 Series

400/450 Series

How It Works

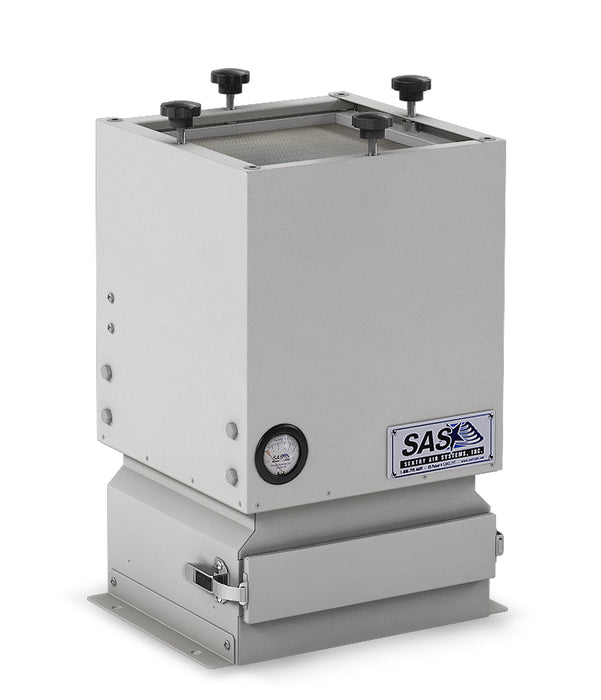

300 Series

How does a Source Capture Mist Collector work?

- Step 1 - Pre-filter – Mist enters mist pre-filter. Depending on the application, collected oil, coolant or water drains back into the machinery to be reused.

- Step 2 - Carbon Pre-filter – Air is filtered through a carbon pre-filter where large particulates are captured.

- Step 3 - Main Filter- Air is purified by passing through a final filter. This final stage will capture fine particulates. Filter choices include:

ASHRAE Filter (up to 95% efficiency on particles down to 0.5 microns)
HEPA Filter (up to 99.97% efficiency on particles down to 0.3 microns)
ULPA Filter (up to 99.9995% efficiency on particles down to 0.12 microns)

- Step 4 - Filtered Air – Filtered air is discharged back into work area

Mist collectors filter the air in machine shops in order to remove harmful oil mist from CNC machines, milling and grinding processes. These systems are commonly used for CNC machine shops to eliminate oil mist. However, they can also be used to collect and filter systems with coolant mist, water mist or other oil mist.

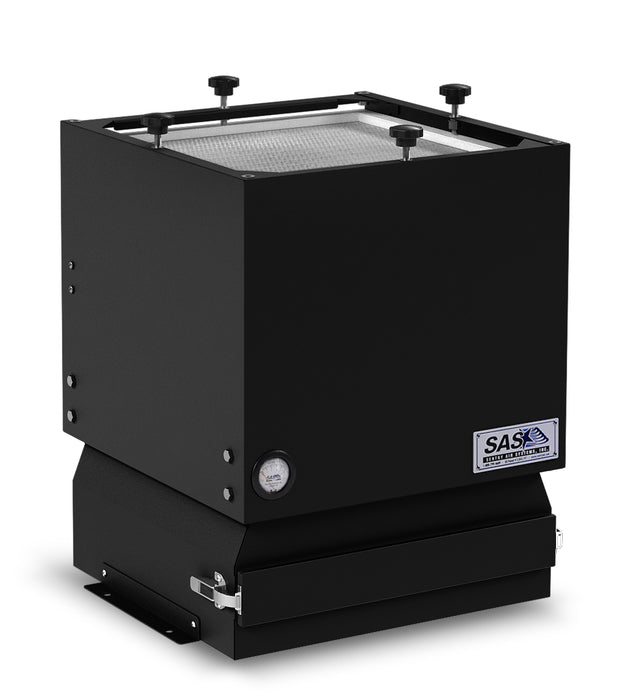

400 Series
