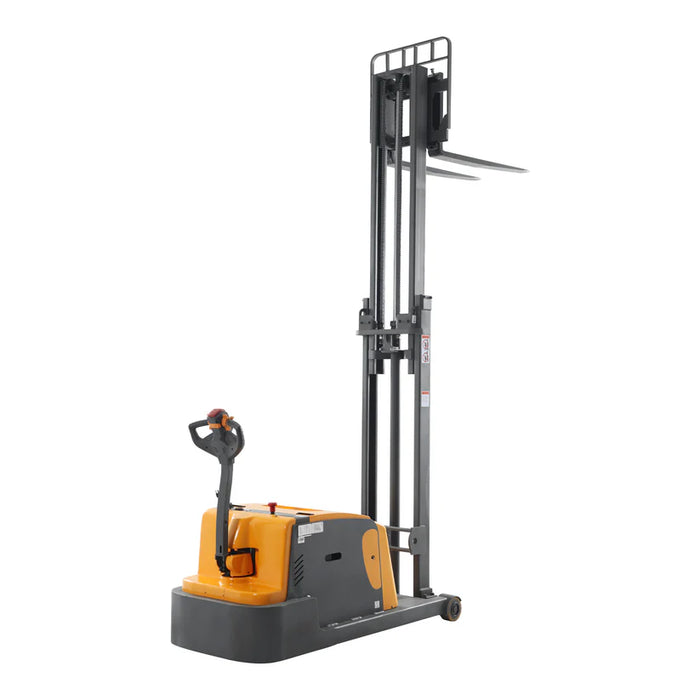

Apollolift Counterbalanced Electric Stacker 3300lbs 118" High Local Pick-Up A-3048

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com

Product Description

• 750-watt drive motor, 2,200-watt lift motor.

• Perfect for approaching racks and trucks, as there are no straddle legs to obstruct a close approach.

• Upright walking function, making it especially suitable for narrow aisles.

• Vertical driving wheel for improved driving efficiency, easy installation, and maintenance.

• 4-5 hours of service per charge: two 12-volt, 125 Ah rechargeable GEL batteries

• Built-in 110V charger.

DIMENSIONS

Overall Length: 107.4"

Overall Width：34.6"

Recommended Aisle Width: 128'' for Pallet 1000x1200, 122'' for Pallet 800x1200

Turning Radius: 66.9"

Load Center: 19.7"

Gradeability (laden/unladen): 5%/10%

MAST

Mast Height Lowered: 81.3"

Mast Lifting Height: 118"

Mast Height Raised: 146.1"

Mast Tilt (forward/backward): 1°/3°

FORKS

Thickness: 1.4"

Width: 3.9"

Length: 37.4"

Fork Width Range: 8.7"-25.4"

FEATURES

• Long handle structure makes truck steering light and flexible.

• Thoughtful mast design allows for wide viewing angles.

• The tilting fork system makes loading and stacking easier.

SPEED

• Lifting Speed (laden/unladen) : 3.1/4.7 inch/s

• Lowering speed (laden/unladen) 4.7/3.9 inch/s

OPERATING CONDITIONS AND ENVIRONMENTAL REQUIREMENTS

• The surface on which the vehicle operates should be flat and solid.

• The forklift is generally used in temperatures ranging from 32°F to 95°F.

• This vehicle must not be used in conditions requiring explosion-proof standards.
