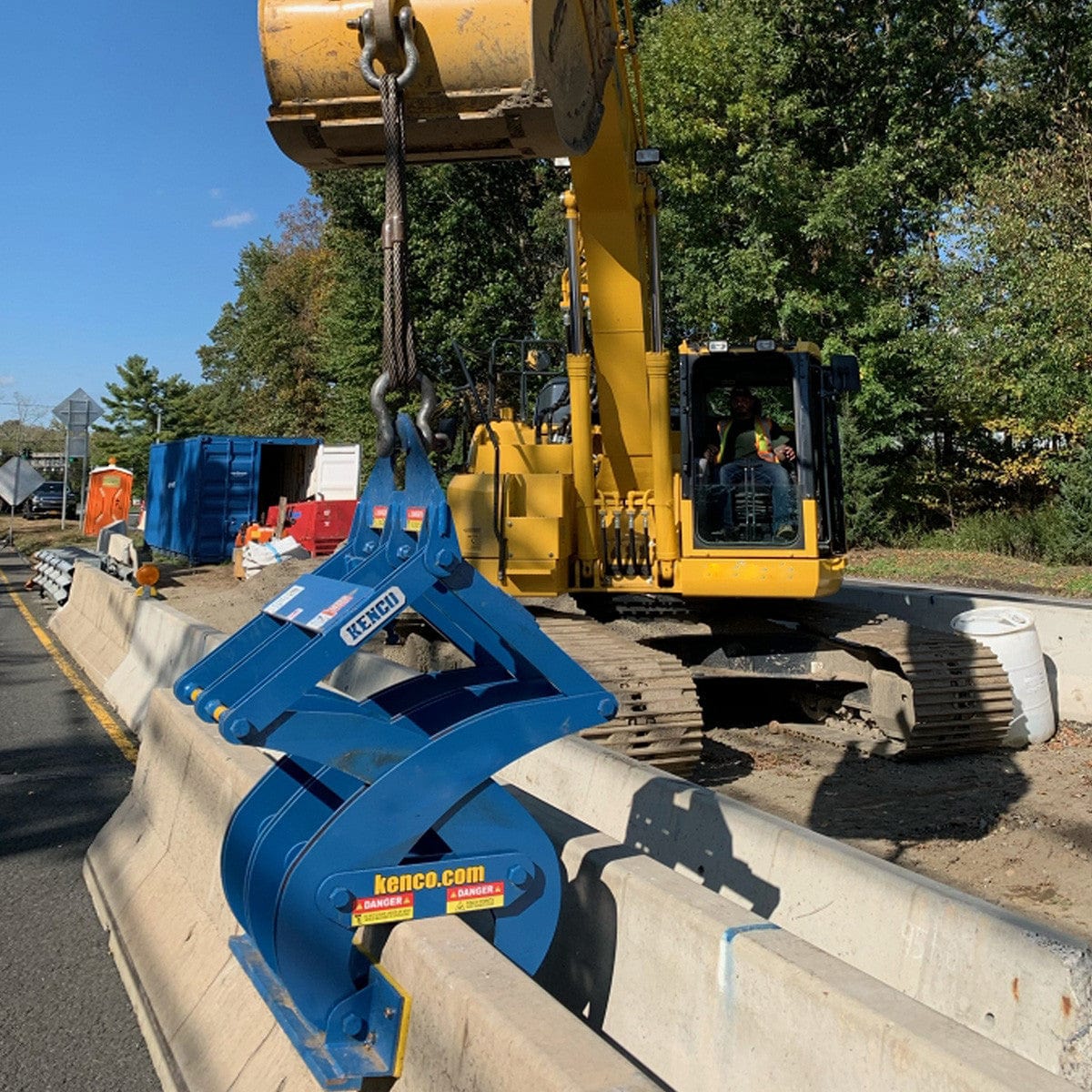

How Jersey Wall Clamps Work: The Scissor-Action Mechanism Explained

Jersey walls show up everywhere in public works and institutional construction: road projects, utility work, campus expansions, and facility upgrades. When it is time to move them, buyers quickly discover that “lifting a concrete barrier” is not a single task. It is a repeatable handling process with real risk. Jersey wall clamps are designed to make that process safer and more consistent by gripping the barrier and translating crane or forklift movement into controlled clamp force.

This guide explains how the scissor-action mechanism works, the main clamp types you will encounter, and what commercial and institutional buyers should evaluate before selecting equipment.

Contact us with your barrier dimensions, weights, and lifting method. We will help you match a clamp style to your workflow and documentation needs.



What is a jersey wall clamp?

A jersey wall clamp is a below-the-hook lifting device or handling attachment designed to grip and lift concrete barriers (often called jersey barriers, K-rail, or highway barriers). The clamp typically grips the barrier from the sides using one of two approaches:

• Friction-based side gripping (common in scissor-action clamps)
• Geometry-based engagement (using a lip, slot, pin, or formed feature, depending on barrier design)

For most “standard” barriers in field settings, the scissor-action clamp is popular because it is:

• Fast to attach and detach
• Adaptable to multiple barrier lengths
• Effective for staged storage yards and repeat moves

The scissor-action mechanism (the simple explanation)

The scissor-action mechanism works like a pair of linked arms that tighten as the load is applied.

1. The clamp is placed over or against the barrier with the jaws open.
2. As the hoist takes tension, the clamp’s linkage rotates.
3. That rotation forces the jaws inward.
4. The increased jaw pressure creates friction (and sometimes mechanical bite), allowing the clamp to lift the barrier.

In plain terms: the heavier the load tries to pull, the harder the clamp squeezes, within the device’s design limits.

How scissor-action clamps generate gripping force (a deeper look)

For B2B buyers, it helps to understand what the mechanism is actually doing mechanically. Scissor clamps convert vertical lifting force into horizontal clamping force via lever arms and pivot points.

Key components typically include:

• Lifting eye or bail: The connection point to the hook or shackle.
• Scissor arms (linkage): Two arms that rotate around a pivot.
• Jaws or pads: The contact surfaces that press against the concrete.
• Pins/pivots: The joints that allow movement.
• Stops/limiters: Features that prevent over-travel.

When the hoist applies upward force at the lifting eye, the scissor arms rotate around the main pivot. That rotation drives the jaws inward. The clamp force depends on:

• The geometry of the linkage (lever ratio)
• The angle of the arms under load
• The friction characteristics of the jaw pads against the concrete
• The condition of the barrier surface

This is why two clamps that “look similar” can behave very differently in real use.

Request a quote for the clamp model that matches your barrier width and weight range. Ask for jaw opening range, pad type, and rated capacity details.



Why scissor-action clamps can be safer than improvised methods

In many institutional environments, barriers are sometimes moved with:

• Forks and chains
• Slings wrapped around the barrier
• Homemade hooks or grab points

These approaches can work in limited scenarios, but they tend to increase variability and risk.

A purpose-built clamp can improve:

• Repeatability: Operators attach the device the same way each time.
• Load control: The barrier is held closer to the lifting line.
• Speed: Faster cycles can reduce time spent in the risk zone.
• Documentation: It is easier to align with internal safety programs when the attachment is a designed lifting device.

Common jersey barrier types and how they affect clamp selection

Not all jersey walls are the same. Buyers should confirm what barrier profile they are handling.

Standard highway barrier (typical jersey profile)

Often has a sloped face and a narrower top. Scissor clamps may grip on the sides of the barrier body.

Buyer watch-outs:

• Top geometry can affect where the clamp seats.
• Surface texture and curing can change friction.

F-shape barrier

Common in modern roadway use. Geometry changes can impact jaw contact area.

Buyer watch-outs:

• Confirm jaw pad design matches the face shape.

Temporary water-filled barrier

These are often plastic and not a match for typical concrete clamp designs.

Buyer watch-outs:

• Do not assume a concrete clamp works on plastic barriers.

Specialty precast barriers or site walls

May have embedded lift points, slots, or unusual dimensions.

Buyer watch-outs:

• A clamp may still work, but application confirmation is critical.

Product types: jersey wall clamps you will see in the market

For most commercial and institutional buyers, clamps fall into a few practical categories.

1) Scissor-action friction clamps (most common)

• Fast attachment
• Grip increases as load is applied
• Usually includes replaceable pads

Best for:

• Repeat lifting in storage yards
• Standard barrier profiles
• Organizations that want a simple operator workflow

Trade-offs:

• Performance depends on surface condition and correct seating.

2) Self-locking mechanical clamps (positive engagement designs)

Some clamps incorporate features that more directly engage geometry (not just friction). These can reduce dependence on surface friction.

Best for:

• Higher duty cycle
• More controlled, engineered lift processes

Trade-offs:

• May be more specialized and require tighter barrier dimension control.

3) Barrier-specific lift devices (embedded insert or pin systems)

Precast producers sometimes use barriers with engineered lift points.

Best for:

• Facilities that can control barrier design
• High-volume production and handling

Trade-offs:

• Less flexible across mixed barrier inventories.

4) Forklift barrier clamps and handling attachments

Some operations move barriers with forklifts using specialized clamps.

Best for:

• Short moves on stable surfaces
• Yard staging when overhead lifting is not needed

Trade-offs:

• Stability and visibility can be limiting.
• Not a substitute for a crane lift plan where required.

Browse products by clamp type (scissor-action, mechanical locking, forklift handling). Then confirm your barrier dimensions and your lifting method.



Applications: where institutional buyers use jersey wall clamps

Scissor-action jersey wall clamps are common in:

Municipal public works and DOT projects

• Traffic control reconfigurations
• Detours and lane shifts
• Seasonal barrier staging

Schools, universities, and campuses

• Temporary vehicle routing during construction
• Event control and temporary access restrictions

Parks and recreation departments

• Restricted vehicle access control
• Temporary closures and safety perimeters

Hospitals and senior living facilities

• Construction zone control
• Service road access management

Hotels and venues

• Loading dock traffic routing
• Event security and access control

In these environments, you often have:

• Multiple operators across shifts
• Intermittent use (equipment may sit idle)
• Strong pressure to “move it quickly”

That is why a clamp that is simple and repeatable can be valuable.

Buyer considerations: what to evaluate before you buy

If you want fewer safety stand-downs and fewer “this doesn’t feel right” moments in the yard, evaluate these areas carefully.

1) Rated capacity vs your real barrier weight

Barriers vary widely by length and design, and added features can change weight.

• Confirm barrier length and approximate weight range.
• Factor in wet conditions, debris, and attachments.
• Include rigging weight where applicable.

If your barriers are mixed inventory, buyers often choose a clamp sized for the heaviest barrier they expect to lift.

2) Jaw opening range and barrier width

A scissor clamp must fit the barrier consistently.

• Confirm minimum and maximum jaw opening.
• Confirm the barrier width at the grip point.

Clamps that “barely fit” are more likely to seat incorrectly.

3) Pad material and contact area

Pads drive friction and protect the barrier surface.

• Larger contact area can reduce concrete damage.
• Replaceable pads support lifecycle maintenance.
• Pad texture can influence grip on smooth vs rough barriers.

4) Surface condition sensitivity

Scissor-action clamps rely heavily on friction. Friction changes with:

• Moisture or ice
• Oil or release agents
• Mud and dust
• Spalled or damaged concrete

Buyer takeaway: if barriers are often wet or dirty, consider clamp designs and pad options that handle variable conditions.

5) Single-clamp vs multiple-clamp lifts

Some operations lift barriers from one point. Others use two clamps or a spreader beam.

• A single clamp can be faster.
• Multiple clamps can improve stability and reduce rotation.

Your lift plan should consider:

• Center of gravity
• Swing risk
• Set-down precision

6) Training and usability

In institutional settings, the best device is often the one that is hardest to use incorrectly.

Look for:

• Clear seating indicators
• Simple attach/detach workflow
• Minimal pinch points
• Easy inspection access

Contact us with photos of your barrier profile and your yard conditions (wet, dusty, indoor, outdoor). We will help you evaluate clamp style and pad options.



Operational best practices (to get the most out of the scissor mechanism)

A scissor-action clamp can perform well, but it must be used consistently.

Step 1: Confirm barrier condition and clear the area

• Remove heavy debris from the grip area.
• Check for major spalling or damage.
• Keep non-essential personnel out of the fall zone.

Step 2: Seat the clamp squarely

• Align jaws to contact the barrier evenly.
• Avoid seating on corners or tapered edges unless the clamp is designed for it.

Step 3: Take tension slowly

• Lift slowly until the clamp engages.
• Pause to confirm the clamp is seated and stable.

Step 4: Perform a controlled test lift

• Raise the barrier just inches off the ground.
• Confirm there is no slipping or unexpected rotation.

Step 5: Move and set down smoothly

• Avoid sudden starts and stops.
• Keep the load as low as practical while traveling.

These steps sound basic, but in repeat operations they prevent most near misses.

Inspection and maintenance: what buyers should plan for

A clamp purchase is not a one-time event. You are buying a lifting device that will be handled, stored, and exposed to jobsite conditions.

Recommended program elements:

• Initial inspection on receipt
• Frequent inspections before use
• Periodic documented inspection on a schedule (especially if use is intermittent)

Common wear points:

• Pins and pivot holes
• Linkage arms and stops
• Jaw pads
• Lifting eye/bail connection

If your organization has multiple sites, buyers should also plan for:

• Consistent storage (rack, tags, identification)
• A simple inspection log process
• Clear “remove from service” criteria

How to compare clamps when you have multiple quotes

Not all clamps are built the same, and “rated capacity” alone does not tell the whole story. Use this framework to compare options.

A) Application fit

• Barrier width range and jaw opening
• Barrier profile compatibility
• Stability in your handling method (single point vs multi-point)

B) Risk control and operator workflow

• How easy is correct seating?
• Are there clear instructions and markings?
• Does the device reduce time in the risk zone?

C) Lifecycle support

• Are pads replaceable and readily available?
• Are wear parts documented?
• Are inspection and maintenance instructions included?

D) Documentation readiness

• Serial identification and markings
• Proof test documentation if required
• Inspection checklist and manual

Request a quote that includes documentation deliverables and recommended inspection cadence, not just unit price.



FAQ: Jersey wall clamps and scissor-action mechanisms

1) Do scissor-action jersey wall clamps rely only on friction?

Most scissor-action clamps use friction as the primary holding method, created by clamp force from the linkage. Some designs incorporate pad textures or geometry that improves grip, but buyers should assume surface condition matters.

2) Can I use a jersey wall clamp on wet or icy barriers?

It depends on pad design, barrier texture, and operating controls. Wet or icy surfaces can reduce friction significantly. Buyers should plan for conservative operating procedures and confirm pad options suited to the environment.

3) How do I know what size clamp I need?

Start with barrier width at the grip point and maximum barrier weight. Then confirm jaw opening range, rated capacity, and recommended usage method (single clamp or paired clamps).

4) Can one clamp handle multiple barrier types?

Sometimes, if the jaw opening and pad contact area remain compatible. If your inventory includes mixed profiles, buyers should request confirmation from the supplier and consider a more flexible design.

5) What is the safest way to test a clamp before routine use?

Perform a controlled test lift: lift the barrier only a few inches, pause, and confirm seating, stability, and no slipping. Repeat after any change in barrier type, surface condition, or operator.

6) Do I need a spreader beam with jersey wall clamps?

Not always. A spreader beam or multi-point rigging can improve stability, reduce rotation, and manage sling angles. Buyers should evaluate this based on the lift plan and set-down accuracy requirements.

7) What maintenance should I expect?

Plan to inspect pins, pivots, and pads. Replace pads when worn, and remove the clamp from service if there is deformation, cracked welds, or excessive pivot wear.

8) How often should clamps be inspected?

Inspection frequency depends on use and environment. Many organizations use a pre-use check plus a documented periodic inspection schedule. If use is intermittent, calendar-based inspections can prevent long gaps.

9) Can jersey wall clamps damage the barrier?

They can, especially if pads are worn, seating is uneven, or the barrier surface is brittle or damaged. Buyers should choose pad types and clamp geometry that distribute force appropriately.

10) Are jersey wall clamps appropriate for all lifting equipment?

They are commonly used with cranes and hoists. If using a forklift handling attachment, treat it as a separate category and follow your internal lift plan and equipment limitations.

Make barrier handling repeatable and defensible

For municipal and institutional buyers, the goal is not just to move barriers. It is to create a repeatable handling process that holds up under training turnover, schedule pressure, and safety review. When you understand the scissor-action mechanism and choose a clamp that matches your barrier geometry and operating conditions, you reduce risk and improve uptime.

Browse products to shortlist clamp types, then Contact us or Request a quote with your barrier dimensions, maximum barrier weight, and intended handling method.
