How to Size a Fume Extractor: CFM Requirements by Application & Workspace Volume
Sizing a fume extractor sounds like it should be simple: pick a unit with enough CFM and move on. In practice, that approach leads to the most common buying mistake in institutional and commercial facilities: a system that looks powerful on paper but does not capture the plume in real use.
CFM matters, but it is only one part of sizing. The right fume extractor is sized around:
- The application (welding, soldering, solvents, laser, dust)
- The capture method (arm, nozzle, hood, enclosure, downdraft)
- Capture distance (how close you can realistically place the intake)
- Workspace volume and airflow turbulence (doors, vents, traffic)
- Filter loading over time (airflow drops as filters load)
This plain-English guide explains how to size a fume extractor using CFM requirements by application and workspace volume, with practical tips for B2B and institutional buyers.
Contact us to share your process, room size, and constraints so we can recommend a right-sized setup.
What CFM means (and what it does not)
CFM (cubic feet per minute) is a measurement of airflow volume. It tells you how much air a fan can move under specific conditions.
CFM helps answer:
- How quickly air can be moved through filters
- Whether a system can support multiple capture points
- Whether ambient air cleaners can cycle room air effectively
But CFM does not automatically tell you:
- Whether capture will work at your bench
- Whether the hood/nozzle can be positioned close enough
- Whether airflow will remain adequate as filters load
Buyer note: for source capture, capture distance and capture device design often matter as much as raw airflow.
Two sizing problems: source capture vs room volume
Facilities often mix these up. They require different sizing approaches.
Problem A: Source capture sizing (workstation protection)
Goal:
- Capture contaminants at the point of generation
Sizing focus:
- Capture method
- Capture distance
- Delivered airflow at the intake
Typical tools:
- Fume extractors with capture arms/nozzles
- Hoods and enclosures
- Downdraft tables
Problem B: Ambient filtration sizing (room air quality)
Goal:
- Reduce background particulate and odors in a whole room
Sizing focus:
- Room volume
- Desired air changes per hour
- Real delivered airflow under filter loading
Typical tools:
- Industrial air cleaners (ceiling, wall, portable)
In many facilities, the best outcome is a layered approach: source capture for the dirtiest points + ambient filtration for background control.
Request a quote for a layered plan sized to both workstation needs and room volume.
Step 1: Identify the contaminant profile (this determines the filtration stack)
Sizing is not only about airflow. It is also about choosing filters that match what you generate.
Particulate (dust, smoke, aerosols)
Common sources:
- Welding smoke
- Grinding/sanding
- Laser smoke/char
Filtration focus:
- Pre-filter
- Fine particulate filtration
- Higher-efficiency particulate stage when needed
VOCs and odors (chemical vapors)
Common sources:
- Solvents and cleaners
- Adhesives/resins/coatings
- Some 3D printing materials and post-processing chemicals
Filtration focus:
- Gas-phase media (often activated carbon)
Buyer note: particulate filters do not reliably remove VOCs. If odor complaints are part of the reason you are buying, your system likely needs gas-phase media and a replacement plan.
Step 2: Choose the capture method (your “CFM requirement” changes by device)
CFM requirements are tied to the capture device and the process.
Capture arms and nozzles
Best for:
- Localized fumes at benches
- Soldering, rework, small solvent tasks
Sizing considerations:
- Real capture distance (closer is better)
- Nozzle size and restriction
- Whether users will reposition the arm consistently
Hoods and partial enclosures
Best for:
- Tasks that benefit from a defined boundary
- VOC-heavy processes where containment matters
Sizing considerations:
- Opening size and airflow stability
- User behavior (sash/door position)
- Room turbulence near doors and HVAC vents
Downdraft tables
Best for:
- Sanding, grinding, deburring
Sizing considerations:
- Workpiece coverage over the active area
- Dust load and pre-filter service cadence
- Maintaining airflow under particulate loading
Step 3: Practical CFM guidance by application (buyer-friendly ranges)
Every manufacturer and process is different, but buyers can use these practical guidelines to avoid undersizing.
Important note: these are starting points for discussion and planning. Final sizing should account for capture distance, nozzle/hood design, filter loading, and how the space is used.
Soldering and electronics benches
Typical needs:
- Fine particulate + odor/VOC control
Practical sizing approach:
- Prioritize close capture (breathing zone protection)
- Choose stable airflow that can run continuously without excessive noise
Common best practice:
- Benchtop unit per station, or a multi-station design sized for simultaneous users
Laser engraving/cutting (enclosure capture)
Typical needs:
- Smoke particulate + strong odors/VOCs depending on substrate
Practical sizing approach:
- Capture from the enclosure whenever possible
- Use multi-stage filtration (particulate + carbon)
3D printing (single printer or clusters)
Typical needs:
- Ultrafine particulate and VOCs depending on material
Practical sizing approach:
- Enclosure-integrated capture or local capture near exhaust
- Add ambient filtration for multi-printer rooms
Solvent, adhesive, and coating tasks
Typical needs:
- VOC control, odor sensitivity in occupied spaces
Practical sizing approach:
- Containment (hood) or close source capture
- Carbon media capacity and replacement planning matter as much as airflow

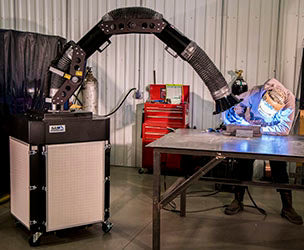

Welding (booths, bays, and stations)
Typical needs:
- Heavy particulate load
Practical sizing approach:
- Source capture close to the plume
- Pre-filtration and particulate stages sized to load
- Consider ambient filtration as a supplement in multi-station bays
Sanding and grinding (bench scale)
Typical needs:
- Heavy particulate load
Practical sizing approach:
- Downdraft/backdraft capture
- Frequent pre-filter attention
Contact us with your application list (process + runtime) so we can recommend a sizing approach and filter configuration.
Step 4: Workspace volume sizing (when you are cleaning the whole room)
If your goal is to reduce background haze, dust settling, and room-wide complaints, ambient filtration should be sized to room volume.
Calculate room volume
Room volume (cubic feet) = length × width × height
Example:
- 25 ft × 20 ft × 10 ft = 5,000 cubic feet
Decide on a target “room turnover”
Room filtration performance is often described by how often the unit can cycle room air.
Buyer guidance:
- Low-use spaces may need less turnover.
- Multi-station, particulate-heavy rooms often need more.
Convert airflow to “air changes”
Air changes per hour (ACH) ≈ (CFM × 60) ÷ room volume
Example:
- 500 CFM in a 5,000 cu ft room → (500 × 60) ÷ 5,000 = 6 ACH
Buyer note: delivered airflow declines as filters load. Plan for realistic performance, not only new-filter conditions.
Request a quote for ambient filtration sized to your room volume and duty cycle.
The hidden sizing factors most buyers miss
These factors often explain why a “big CFM” unit underperforms.
1. Capture distance and user behavior
If users will not keep a nozzle close, you may need:
- Better ergonomics
- Enclosures
- Standardized stations
2. Room airflow turbulence
Doors, roll-up bays, and HVAC supply vents can disrupt capture.
3. Filter loading over time
- Particulate filters load and restrict airflow.
- Carbon media saturates and allows odor breakthrough.
Sizing should include a maintenance plan so performance stays predictable.
4. Multi-station reality
A system serving multiple stations must be sized for:
- How many stations run simultaneously
- Whether capture is consistent at each point
5. Noise constraints
In schools and occupied buildings, noise drives whether systems stay on.
Buyer’s checklist: what to gather before requesting a quote
To size correctly without endless back-and-forth, collect:
- Application and process list
- Welding, soldering, laser, 3D printing, solvents, sanding
- Materials list
- Chemicals used (solvents/adhesives)
- Filaments/resins
- Laser substrates
- Duty cycle
- Hours per day/week
- Simultaneous stations
- Room details
- Length/width/height
- Doors, vents, traffic flow
- Occupancy and noise constraints
- Capture method preference
- Nozzle/arm, hood/enclosure, downdraft, ambient support
- Maintenance capacity
- Who owns inspections and filter changes
- Desired replacement cadence
Contact us with the above details and we will recommend a right-sized CFM and filtration approach.
FAQ: sizing a fume extractor (CFM and workspace volume)
What CFM do we need for a fume extractor?
It depends on application, capture method, and capture distance. CFM is only useful when you also know how the intake will be positioned.
Is higher CFM always better?
Not always. Higher airflow can improve capture, but it can also increase noise and filter loading. The best setup is right-sized for real use.
How do we size for multiple workstations?
Start with how many stations run simultaneously, then size airflow and capture at each point. Central systems require careful design.
How do we size for soldering?
Prioritize close source capture and continuous-use noise levels. Filtration should include particulate and often carbon media for odors.
How do we size for laser engraving?
Capture from the enclosure when possible and use multi-stage filtration for smoke and odors.
How do we size for 3D printing rooms?
Use enclosure or local capture at printers, then consider ambient filtration sized to room volume for multi-printer rooms.
How do we size ambient filtration using room volume?
Calculate room volume and estimate ACH using (CFM × 60) ÷ volume. Plan for airflow reduction as filters load.
Why does performance get worse over time?
Filters load and airflow drops, and carbon media saturates. A maintenance plan is part of sizing.
What are signs a system is undersized?
Visible plume escape, lingering odors, dust settling beyond the station, complaints, and frequent workarounds.
What information should we gather before requesting a quote?
Process list, materials, runtime, room dimensions, capture method, noise constraints, and maintenance expectations.
Right-sizing means matching capture, filtration, and real workflow
CFM is an important metric, but it is not the sizing decision by itself. The best fume extraction setups are sized around capture method and distance, filtration stages matched to contaminants, and a maintenance plan that keeps airflow and media performance predictable.
