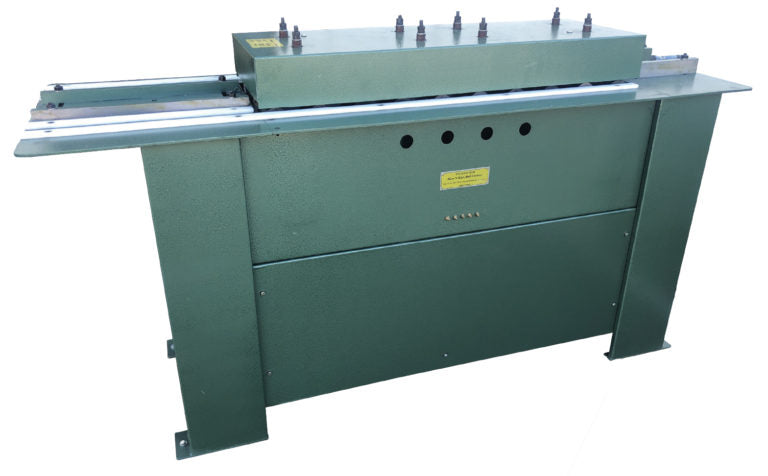

Tin Knocker TK Hem & Kick Roll Former

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

This machine is standard equipped with no tooling in the center position and (2) sets of outboard shafts equipped with;

• ½” x 180-degree hem rolls for 20-26ga (right side)
• ½ Hem with 5/8” Kick Rolls (left side)

TK Hem & Kick Manual

Specifications

• Speed: 90 feet per minute
• Motor: 5 HP 230/460/3/60/1800 RPM
• Drive: Matched Double Vee Belt
• Base: Arc Welded Steel. Heavy top plate.
• Dimensions: 68” long, 24” wide, 48” high
• Feed table height: 34 5/8”
• Shipping Weight: Approximately 1050 lbs.
