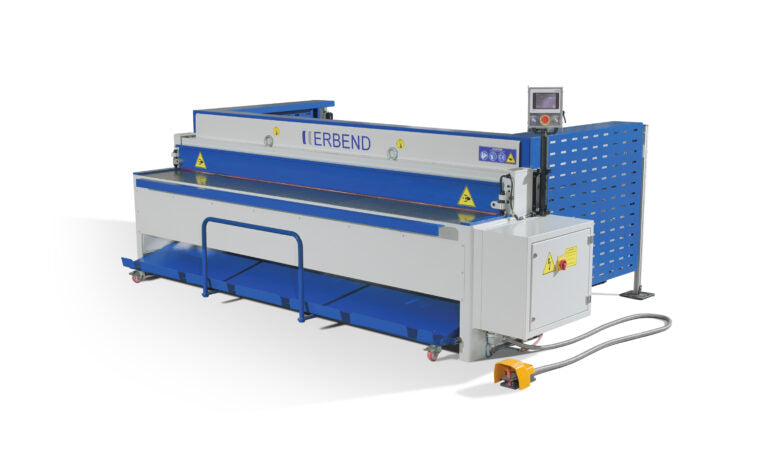

Tin Knocker ERBEND 10 ft. Power Shear

For quotes, add products to your quote request with the Add to Quote button, or call (888) 240-7247 or email sales@ironforgeindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

The ERBEND 10 ft. Power Shear is a powerful and versatile shear that is perfect for a variety of sheet metal cutting tasks. It has a cutting length of over 10 feet and can cut mild steel between 6 and 16 gauge, depending on material and model. The shear is also equipped with a motorized back gauge system, which allows for precise and repeatable cuts. The ERBEND Power Shear increases productivity while reducing labor, setup time, and errors, ensuring consistent, high-quality results for every job.

EMS 3220 Standard Features

• ERCUT NC Control System
• Friction free guillotine blade geometry & dual sided blades
• Spring loaded hold-down bar & polyurethane material clamping surface
• Fixed side squaring gauge & stainless feeding table with ruler on each side
• Retractable front sheet support bar
• LED Illumination of cutting area & cutting line

EMS 3220 UPGRADED Features

• 1000 mm (39”) Servo motorized back gauge system
• Pneumatic Sheet Support with FRONT & REAR Drop
• Squaring arm, 75” side gauge extension
• Blank Sheet Wagon
• Integrated transformer; 230 Volt – 3 phase

EMS 3220 Specifications

• Material Capacity: 14ga Mild Steel, 16ga Stainless Steel
• Maximum Material Width: 125"
• Approximate Dimensions: 145" x 70" x 55"
• Approximate Weight: 6800 lbs

EMS 3240 Standard Features

• ERCUT NC Control System
• Friction free guillotine blade geometry & dual sided blades
• Spring loaded hold-down bar & polyurethane material clamping surface
• Fixed side squaring gauge & stainless feeding table with ruler on each side
• Retractable front sheet support bar
• LED Illumination of cutting area & cutting line

EMS 3240 UPGRADED Features

• 1000 mm (39”) Servo motorized back gauge system
• Pneumatic Sheet Support with FRONT & REAR Drop
• Squaring arm, 75” side gauge extension
• Blank Sheet Wagon
• Integrated transformer; 230 Volt – 3 phase

EMS 3240 Specifications

• Material Capacity: 6ga Mild Steel, 10ga Stainless Steel
• Maximum Material Width: 125"
• Approximate Dimensions: 145" x 70" x 55"
• Approximate Weight: 7100 lbs
