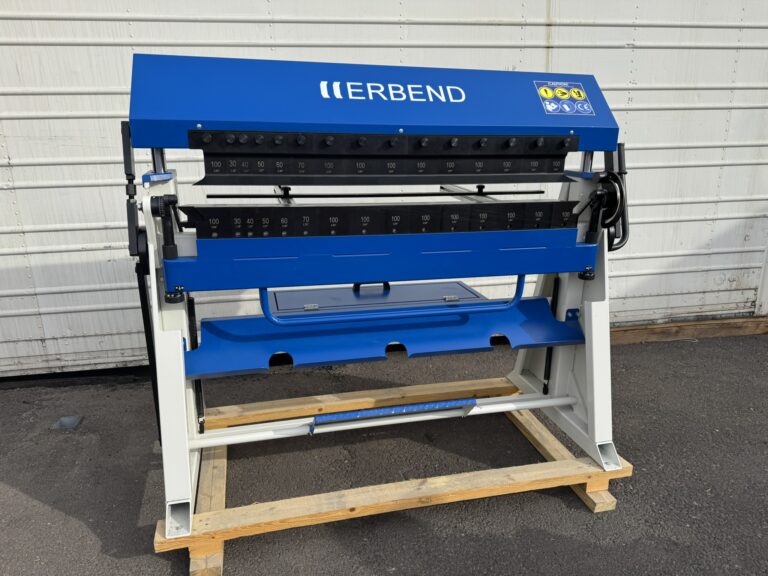

Tin Knocker ERBEND 4 ft. Manual Segmented Brake
by Tin Knocker
Original price
$7,950.00
-
Original price
$7,950.00
Original price
$7,950.00
$7,950.00
-
$7,950.00
Current price
$7,950.00
For quotes, add products to your quote request with the Add to Quote button, or call (888) 240-7247 or email sales@ironforgeindustrial.com.
Tin Knocker, your source for quality, affordable sheet metal working machinery.
The ERBEND 4 ft. Manual Segmented Brake is a robust, manually operated machine, capable of bending sheets up to 18 gauge. The vertical clamping beam allows a 7.8″ opening height, and the ERBEND easy tool clamping system makes set-up fast and easy. There is segmented tooling for both the clamping beam and lower beam tools, allowing bending in inverse directions to enable special profiles, such as boxes and pans, to be formed.
Features
- 15 clearly labeled tooling segments on top and bottom bending surfaces for creation of complex bending profiles
- Manual backgauge for consistent material positioning
- Mounted on heavy duty locking casters for easy repositioning
Specifications
- Maximum Material Capacity: 18 ga Mild Steel
- Maximum Material Width: 49"
- Maximum Opening Height: 8"
- Approximate Dimensions: 67.5″W x 29.5″D x 59″H
- Approximate Weight: 695 lbs
