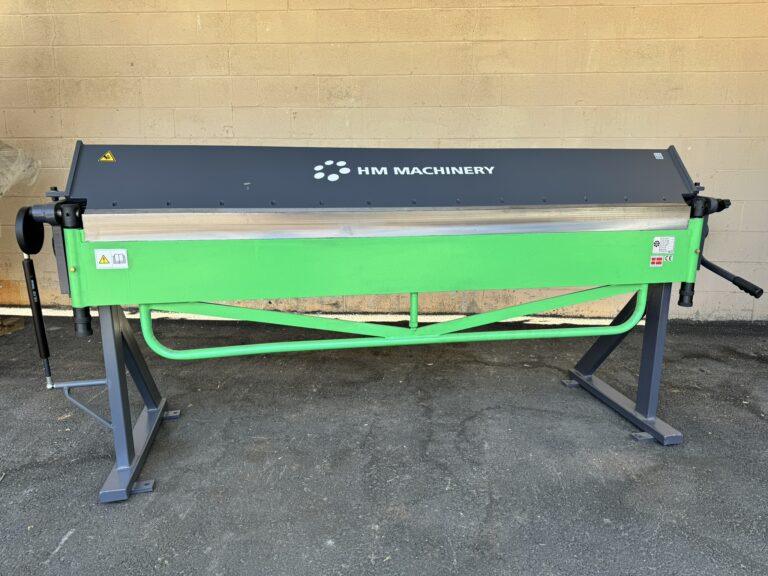

Tin Knocker HM Machinery 2000L 6ft x 20 ga Straight Brake

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

The HM Machinery 2000L 6ft x 20 ga Straight Brake is a durable, large-scale manual brake designed to produce consistent high quality bends up to 79″ wide in high-production environments.

Precision ground tooling on the single piece angled nose bar, combined with cross-driven clamping and a repeat angle stop, enable repeatable and accurate bends.

A full-width apron handle and piston-assisted opening and closing make the 2000L easy to operate, even when working with large sheets of material.

Features and Benefits

• Precision ground tooling on the angled nose bar creates straight, clean bends every time.
• Cross-driven clamping allows easy consistent material positioning.
• Repeat angle stop enables easily repeatable bends.
• Full length apron lift handles are ergonomically designed to allow easy operation, even with large sheets of material.

Specifications

• Maximum Bend Length: 79”
• Maximum Material Capacity: 20-Gauge Mild Steel
• Maximum Opening: 1.5”
• Maximum Folding Angle: 135 Degrees
• Approx. Shipping Dimensions: 92” x 29” x 44”
• Approx. Shipping Weight: 1050lbs.
