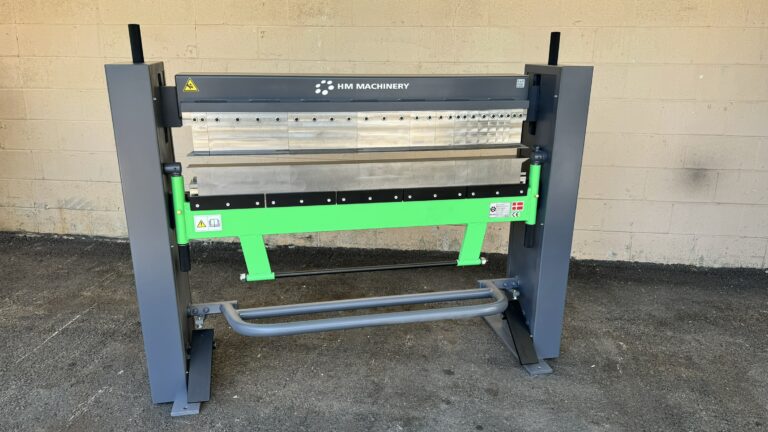

Tin Knocker HM Machinery HS-3S-3SH 4ft x 12 ga Universal Manual Brake

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

The HS-3S-3SH Universal Manual Brake is a 50 inch, 12 gauge universal brake with segmented top and bottom bending surfaces. The HS-3S-3SH brake allows bending in inverse directions, enabling special profiles, such as boxes and pans, to be formed.

HM Machinery Superflex machines are heavy duty, with fully welded construction. Foot-operated control of the clamp bar ensures extremely fast and simple operation and allows both hands to be kept free for adjustment of the material being folded.

Features and Benefits

• Precision ground tooling creates straight, clean bends every time.
• Equipped with 13 segments of tooling on both top and bottom bending surfaces.
• Precise material positioning is made possible with a foot-operated clamping mechanism, allowing the operator to use both hands to handle and position material
• Repeat angle stop enables easily repeatable bends.
• The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles.

Specifications

• Maximum Bend Length: 50”
• Maximum Material Capacity: 12 Gauge Mild Steel
• Maximum Opening: 1.78”
• Maximum Folding Angle: 100-150 Degrees (depending on profile)
• Approx. Shipping Dimensions: 63”W x 36”D x 50”H
• Approx. Shipping Weight: 915 lbs.
