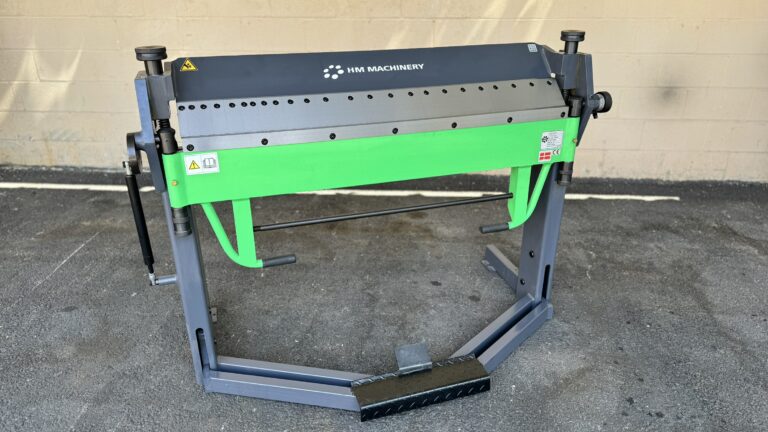

Tin Knocker HM Machinery HS-3S 4ft x 14 ga Box and Pan Brake w/ Foot Clamp

The HM Machinery HS-3S 4ft x 14 ga Box and Pan Brake w/ Foot Clamp is a large scale brake with angled segmented tooling, designed for the fabrication both straight and box and pan profiles. The HS-3S brake is a durable manual brake with a stout base for floor mounting in high production environments, where it can produce high quality and consistent complex bends.

Features and Benefits

• Precision ground tooling creates straight, clean bends every time.
• Equipped with 13 segments of angled tooling on both top and bottom bending surfaces.
• Cross-driven clamping allows easy consistent material positioning.
• Repeat angle stop enables easily repeatable bends.
• The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles.

Specifications

• Maximum Bend Length: 50”
• Maximum Material Capacity: 14-Gauge Mild Steel
• Maximum Opening: 1.78”
• Maximum Folding Angle: 135 Degrees
• Approx. Shipping Dimensions: 66” x 42” x 48”
• Approx. Shipping Weight: 725lbs.
