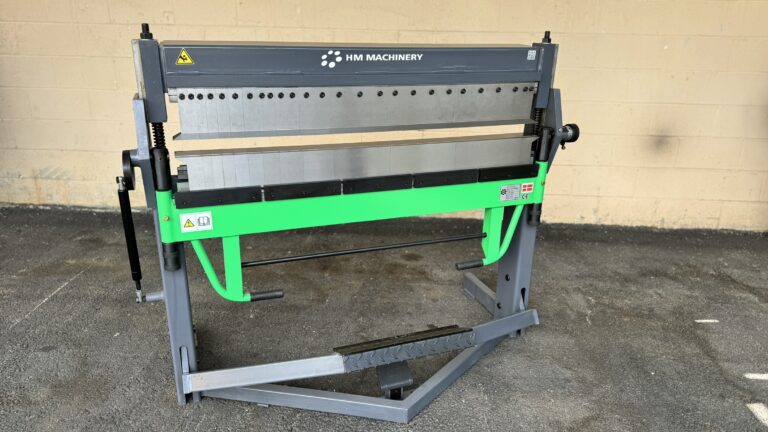

Tin Knocker HM Machinery HS-3S-S 4ft x 16 ga Universal Brake
by Tin Knocker
Original price
$6,850.00
-
Original price
$6,850.00
Original price
$6,850.00
$6,850.00
-
$6,850.00
Current price
$6,850.00
For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.
Tin Knocker, your source for quality, affordable sheet metal working machinery.
The HM Machinery HS-3S-S 4ft x 16 ga Universal Brake is a large scale brake with segmented tooling, designed for the fabrication of box and pan and other special profiles, including those with inverse bends. The Superflex is a durable manual brake with a stout base for floor mounting in high production environments, where it can produce high quality and consistent complex bends.
Features and Benefits
- Precision ground tooling creates straight, clean bends every time.
- Equipped with 13 segments of tooling on both top and bottom bending surfaces.
- Precise material positioning is made possible with a foot-operated clamping mechanism, allowing the operator to use both hands to handle and position material
- Repeat angle stop enables easily repeatable bends.
- The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles.
Specifications
- Maximum Bend Length: 50”
- Maximum Material Capacity: 16-Gauge Mild Steel
- Maximum Opening: 1.78”
- Maximum Folding Angle: 100 or 150 Degrees (depending on profile)
- Approx. Shipping Dimensions: 63” x 36” x 50”
- Approx. Shipping Weight: 915lbs.
