Tin Knocker HM Machinery MRM 5ft x 1/4″ Power Roll

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

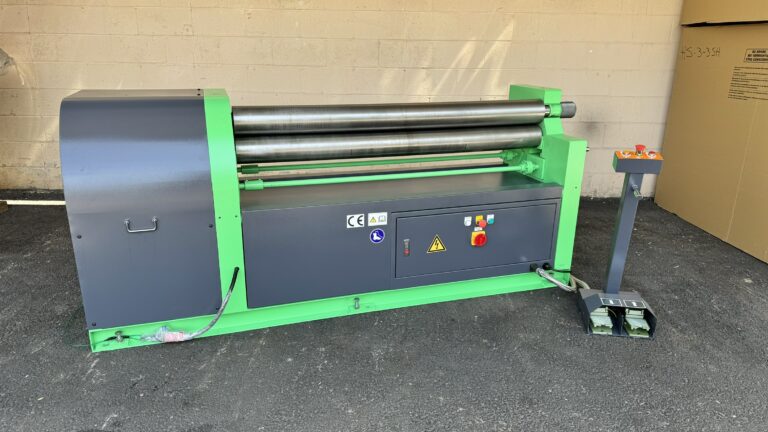

The HM Machinery MRM 5ft x 1/4″ Power Roll is a heavy duty motorized bending roll, with 3 rolls mounted on solid steel gable-ends, for heavy gauge, large scale fabrication.

The MRM Power Roll can accommodate sheets up to 60″ wide and 120″ in length, with a material capacity of 1/4″ mild steel. Roll position is easily adjusted via a powered gear system.

With both upper and lower rolls driven, plus a high polished finish, preventing damage to pre-finished components or marking of materials is easily avoided.
MRM 1550-130

Features and Benefits

• Upper and lower rolls are driven directly via a hardened gear system.
• Upper roll swings out to allow easy removal of finished metal roll
• Easy and accurate adjustment of all 3 independently-mounted rolls to accommodate varying material thicknesses and bend profiles
• Mobile control panel with 3 position foot pedal (including emergency stop)

Specifications

• Maximum Material Width: 60”
• Maximum Material Capacity: 1/4" Mild Steel
• Roller Diameter: 5”/130mm
• Minimum Bending Diameter: 7.7"/195mm
• Motor: 3HP
• Approx. Shipping Dimensions: 107”W x 26”D x 42”H
• Approx. Shipping Weight: 3200 lbs.
