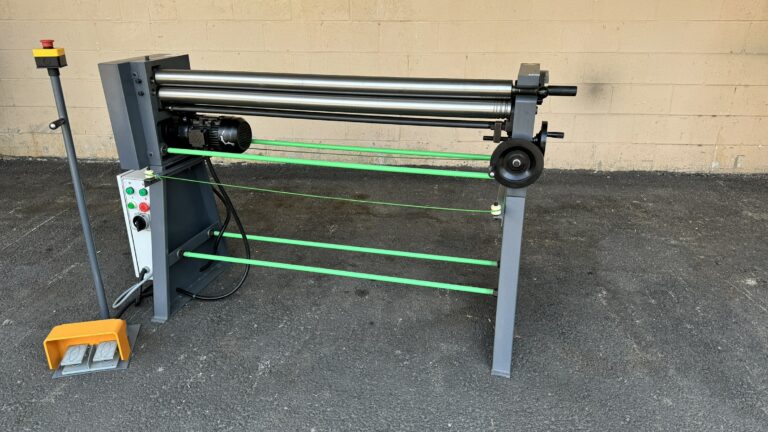

Tin Knocker HM Machinery TTE 1848 Power Slip Roll (18ga x 48”)

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

The HM Machinery TTE 1848 Power Slip Roll (18ga x 48”) makes pre-bending easy and accurate.

The asymmetric rolls are crowned for the straight rolling pinch. Both the lower roll and bending roll are easily adjusted by a worm-gear handle.
The lower and rear roller come standard with fire groove for rolling wire profiles.

The TTE comes as standard with a 0.75 KW brake motor, inverter, forward/backwards foot pedal fitted with an emergency stop. 3-phase, 230V power, with option for 1-phase for extra $250.

Specifications

• Maximum Material Width: 50”
• Maximum Material Capacity: 18-Gauge Mild Steel
• Power: 3-phase, 230V (option for 1-phase)
• Roller Diameter: 2.4"/60mm
• Minimum Bending Diameter: 3.5"/90mm
• Approx. Shipping Dimensions: 67” x 22” x 40”
• Approx. Shipping Weight: 620lbs.
