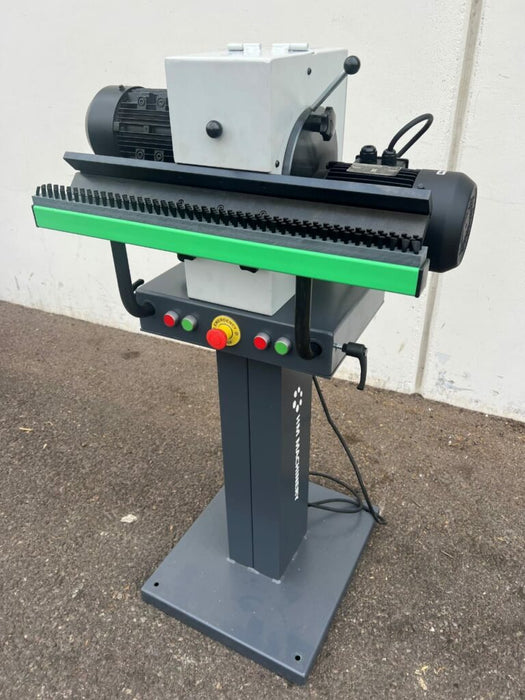

Tin Knocker HM Machinery ZA250 Sheet Deburring Machine

The HM Machinery ZA250 Sheet Deburring Machine is a dual wheel design, designed for deburring the edges of sheet or plate metal up to 10mm or 3/8” thick. The ZA250 utilizes abrasive flap wheels to debur most ferrous and nonferrous materials, including mild steel, aluminium, stainless steel, copper, and brass.

Features & Benefits

• Dual motors which rotate in opposite directions, and can debur either one edge, or both edges simultaneously with the 60 grit flap wheels.
• The adjustable material support accommodates a wide range of sheet sizes, allowing flexibility for different projects or fabrication needs.
• The top cover of the machine can be opened to grind or finish flat surfaces in addition to edge deburring.
• The motors have adjustable positioning, which allows the operator keeps the flap wheels in a consistent position as they wear over time.

Specifications

• Material Capacity: 10mm or 3/8" ferrous and non-ferrous sheet metal
• Flap Wheels: 2"/60 grit
• Motor: 3/4 HP, 1400-1700 RPM
• Wiring: 3 phase, 230V, 60hz
• Dimensions: 22"W x 27"L x 50"H
• Shipping Weight: 155lbs
