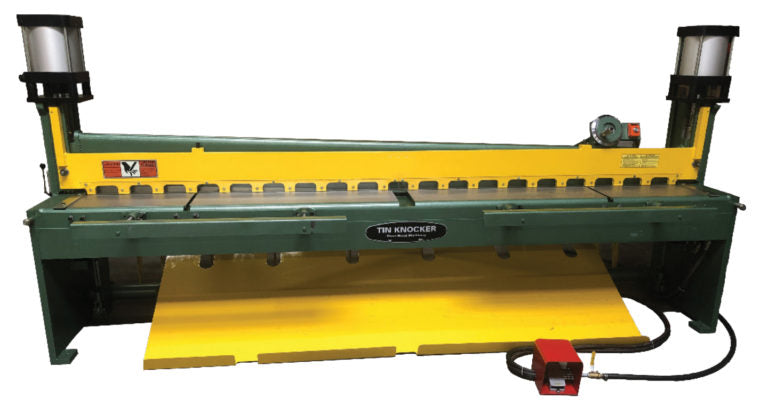

Tin Knocker TK 1014 Air Shear

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

Try to find a comparable 10 ft. x 14 ga. Power Shear in terms of features and price!  You won’t find it.

This shear sets a new standard for value in a 10 ft. x 14 ga. Power Shear.  It is loaded with truly usable, standard features to include:

1. Manual Front Operated Precision Back Gauge with Digital Readout
2. Telescoping Pull Out Front Sheet Supports
3. Mechanical Front Dumping Rear Sheet Supports
4. Reversible 4 ft. Squaring Arm with Embedded Scale and 3 Drops Stops
5. Scaled Entrance Guides, Both Ends
6. Manual One-Shot Lubrication
7. Two T-Slotted, 24″ Front Support Arms

TK 1014 Air Shear Manual

Specifications

• Weight: 3775 lbs
• Dimensions: 144 x 40 x 64 in
• Capacity: 14-gauge mild steel & 18-gauge stainless steel
• Cycle Speed: 20 strokes per minute
• Air Supply: 80-gallon tank needs 90 psi at 14 CFM
