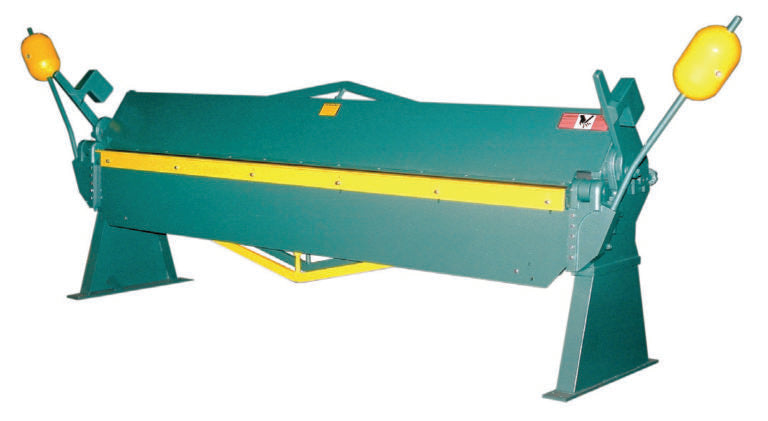

Tin Knocker TK 1016 Leaf Brake

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

BUILT TO LAST A LIFETIME OF PERFORMANCE.
The TK 1016 is an industrial quality brake, the kind you need only buy once in a lifetime.

Important Features:

• Rugged Spring Steel Nose Bar for long lasting, durable service
• Rebuildable with Bronze Bushings.  No steel on steel or wallowed out pivot holes
• Grease zerks at wear points
• Heavy, plate fabricated frame with bronze lined cast and machined hinges
• Brass bushed clamp handles
• Full length Stiffening Bar to help bend to capacity

TK 1016 Leaf Brake Manual

Specifications

• Weight: 3000 lbs
• Dimensions: 160 x 50 x 60 in
• Capacity: 16 Ga
• Bend Length: 10’1″
• Beam Lift: 2 1/4″
• Bolt On Apron Angle: Incl
• Counter Weight: Incl
• Depth of Box or Pan: 2″ 3 sides
