Tin Knocker, your source for quality, affordable sheet metal working machinery.

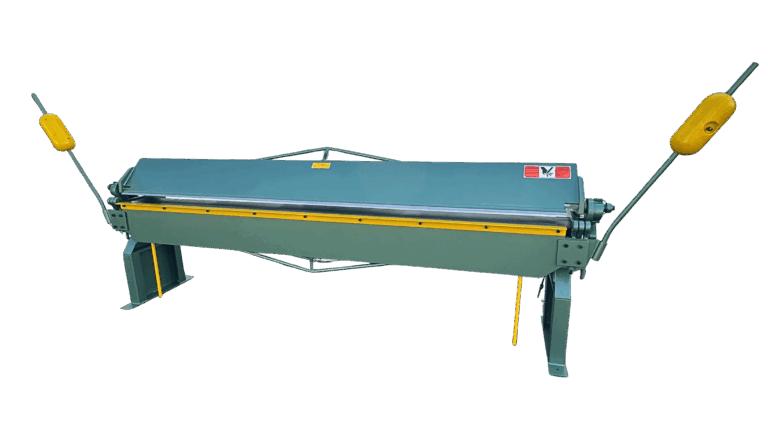

The Tin Knocker 1018 Leaf Brake is a heavy duty, manual sheet metal brake, capable of bending material up to 10 feet wide and 18 gauge weight. The 1018 is an industrial-quality brake, designed and built to last.

The Tin Knocker 1018 Leaf Brake includes the following features:

• A spring steel nose bar for durability and long-lasting service
• A heavy plate fabricated frame, paired with a full-length stiffening bar to bend smoothly and consistently to maximum material capacity.
• A heavy-duty clamping mechanism, and bronze bushings at pivot points with zirks for lubrication. Easily serviceable and rebuildable.
• A simple, adjustable angle-stop for accurate, repeatable bends up to 135 degrees.

Specifications

• Material Capacity: 18ga
• Max. Bend Length: 10'-1"
• Beam Lift: 2-1/4"
• Max. Bend Angle: 135°
• Box/Pan Depth: 2" on 3 sides
• Dimensions: 144" x 32" x 43"
• Weight: 2750 lbs
• Included Equipment: Bolt-on apron angle & counterweights
