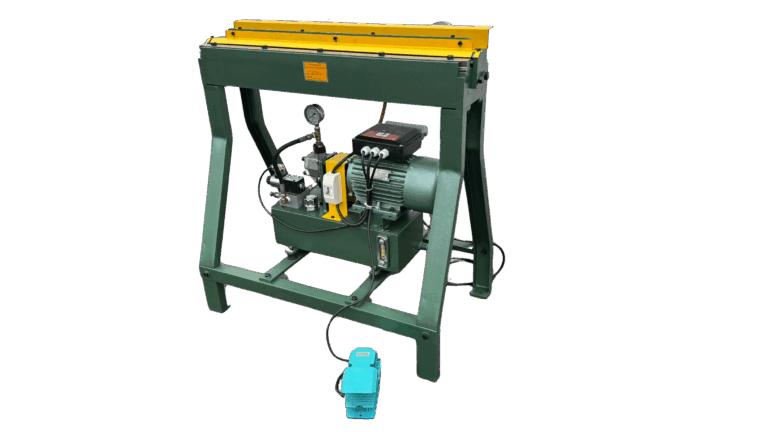

Tin Knocker TK Button Punch Cheek Bender

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

The Tin Knocker Button Punch Cheek bender is a versatile machine that allows operators to create 3 different types of flanges for use in the fabrication of fittings, with a single piece of hardened tooling. The button punch cheek bender is hydraulically-driven, and easy to operate via foot pedal, improving the efficiency of any shop.

The button punch cheek bender allows the operator to create 3 types of flanges:

• ½” right angle flange with button punch

• ½” right angle Pittsburgh flange
• ¼” right angle Pittsburgh flange

Specifications

• Material Capacity: 20 gauge or lighter mild steel
• Motor: Single Phase, 110 Volt, 15amp
• Dimensions: 46” x 44” x 31”
• Shipping Weight: 350 pounds
