Tin Knocker TK Power Crimper Beader

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

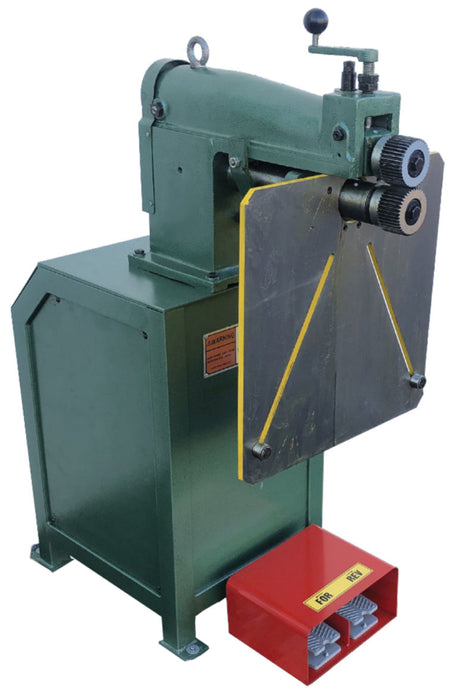

The Tin Knocker Power Crimper Beader is a durable and versatile machine, capable of performing most beading and swaging functions with mild steel as thick as 18 gauge. The Power Crimper Beader has a deep, 13-inch throat, paired with a heavy-duty adjustable back gauge, to make handling material easy, regardless of size or depth.

The machine is built for durability, and is made of solid, machined cast iron, mounted on a sturdy sheet metal cabinet. A two-pedal foot switch allows the operator to have both hands free when feeding material or changing direction of the rolls.

TK Power Crimper Beader Manual

Specifications

• Capacity: 18 gauge mild steel
• Motor: 1HP, 230V, 3-Phase
• Throat-to-frame depth: 13″
• Throat-to-backgauge depth: 12-1/4″
• Weight: 340 lbs
• Dimensions: 39" x 14.5" x 52"
• Included Tooling: 9 sets of rolls + spacers (see 'More Information' tab)

Optional air-over system:
