Top Dog Attachments Standard Brush Grapple
Original price
$3,457.00
-
Original price
$3,814.00
Original price
$3,457.00
$3,457.00
-
$3,814.00
Current price
$3,457.00
For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

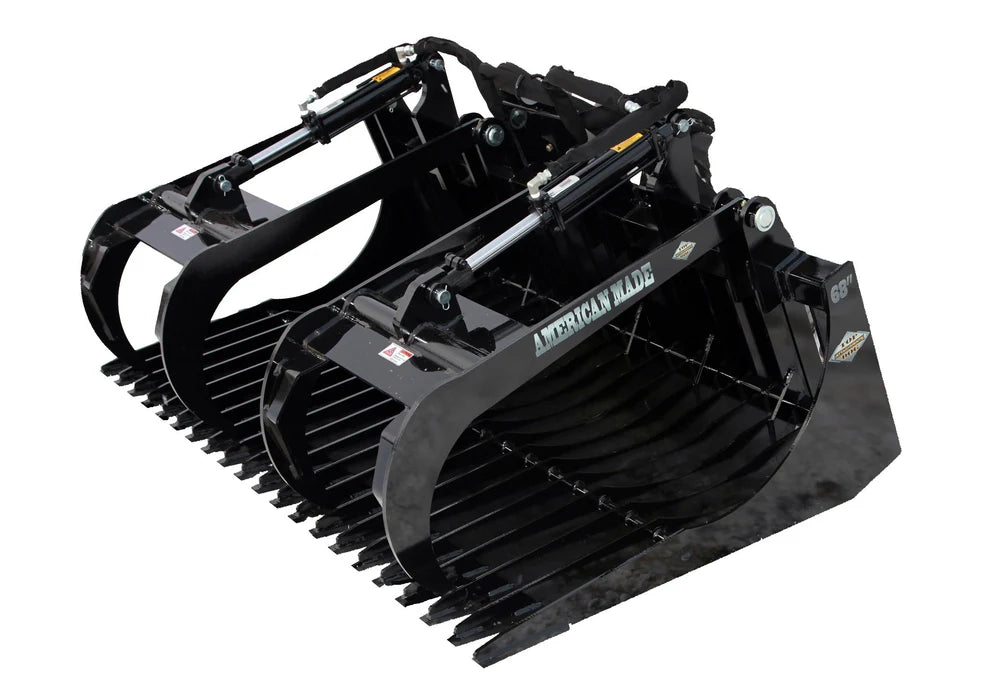

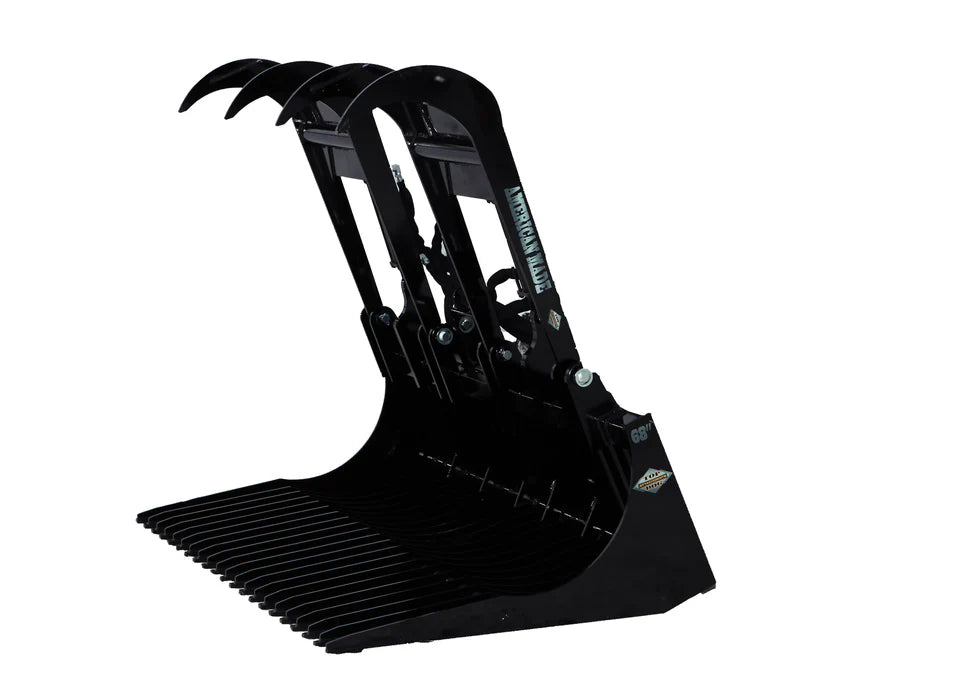

Introducing the Top Dog Attachments Standard Brush Grapple. This grapple is designed with high-quality GR-50 steel, ensuring durability and strength for your toughest tasks.
The Standard Brush Grapple is American-made and features a robust design that can handle a variety of tasks. We designed this grapple with 3" tine spacing, cut out of 3/8" GR50 Steel. The side plates are also 3/8" GR50 Steel, and they have a shallow cutout to make hauling long trees, branches, and overgrown brush an easy task.
Here are the key dimensions of the Standard Brush Grapple:
Part #9010030
- Description: B62″ Brush Grapple
- Overall Height: 32”
- Width: 62”
- Inside Depth: 41.5″
- Open Tine to Tine Height: 50″
- Weight: 837 LBS
- Tine Spacing: 3″
- Tines and Top Cross Bar: A-50 Steel
Part #9010031
- Description: B68″ Brush Grapple
- Overall Height: 32”
- Width: 68”
- Inside Depth: 41.5″
- Open Tine to Tine Height: 50″
- Weight: 833 LBS
- Tine Spacing: 3″
- Tines and Top Cross Bar: A-50 Steel
Part #9010032
- Description: B75″ Brush Grapple
- Overall Height: 32”
- Width: 72”
- Inside Depth: 41.5″
- Open Tine to Tine Height: 50″
- Weight: 929LBS
- Tine Spacing: 3″
- Tines and Top Cross Bar: A-50 Steel
Part #9010033
- Description: B82″ Brush Grapple
- Overall Height: 32”
- Width: 82”
- Inside Depth: 41.5″
- Open Tine to Tine Height: 50″
- Weight: 965 LBS
- Tine Spacing: 3″
- Tines and Top Cross Bar: A-50 Steel
