Top Dog Attachments Clamp-On Pallet Fork

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

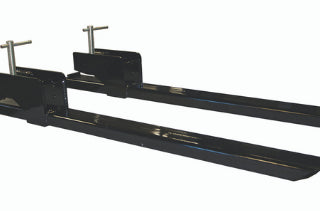

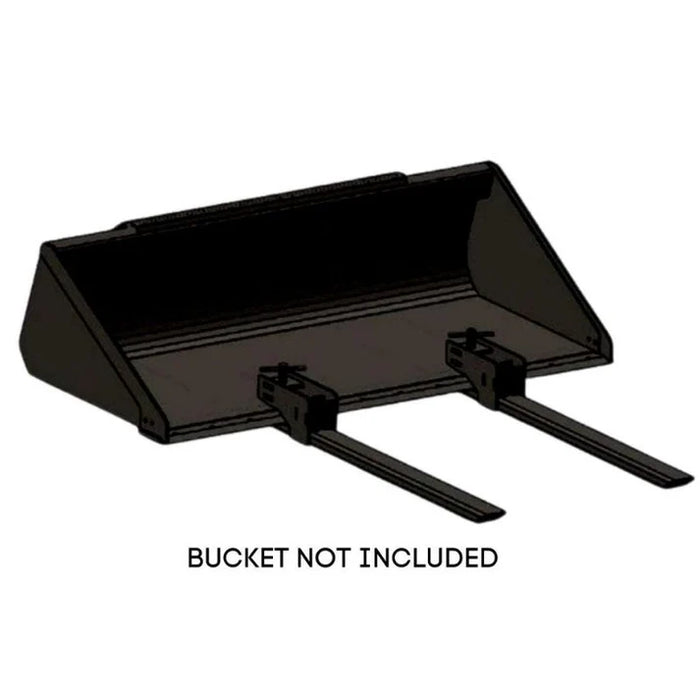

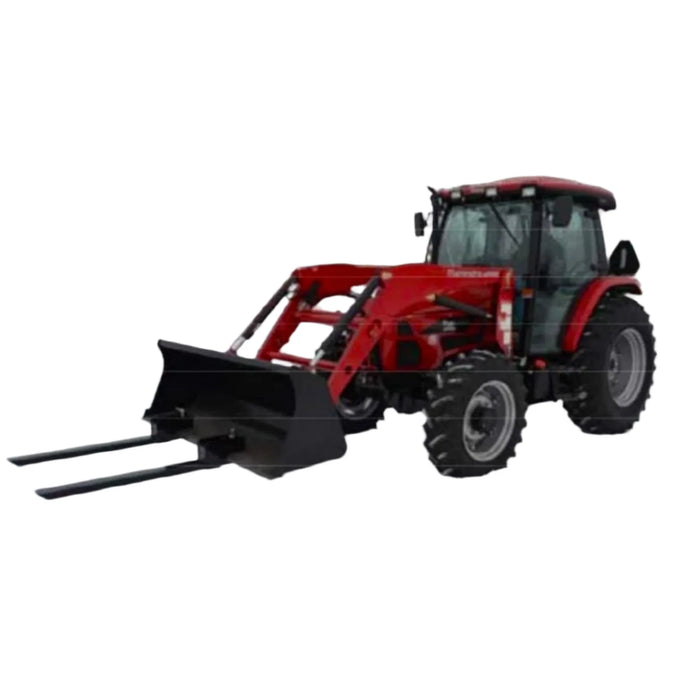

The Clamp on Pallet Forks mount to most loader buckets without tools and have an easy on/off design for added convenience.  The attachment can be adjusted with ease to fit any pallet width and features a built-in stake pocket for a 2×4 to be installed as an upright backstop.

Designed for use with palletized material only. Lift limit is determined by fork capacity or loader capacity, whichever is less. Capacity is based on no more than 1/2 load per fork and load no more than 1/2 way out on each fork.

Specifications

• Part #: 9033179
• Lift Capacity (per set of 2 pallet forks): 2,000 LBS
• Overall Tine Length: 41-1/4″
• Weight each: 61 LBS
• Grapple Opening: 12.5″
• Tine Width: 4″
• Tine Height: 2″
• Threaded Clamp Rod: 1-6 acme
• Throat Opening: 1-3/8″
• Throat Depth: 8″
