Top Dog Attachments Dual Side Flow Bucket – Heavy
Original price
$11,520.00
-
Original price
$12,122.85
Original price
$11,520.00
$11,520.00
-
$12,122.85
Current price
$11,520.00
For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

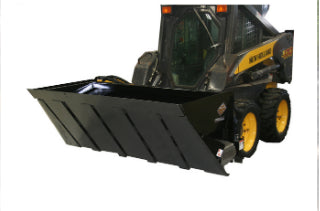

Heavy-duty, light material bucket attachment with dual side discharge. The bucket allows material to be scooped up and moved out through one of two side discharge openings. The operator rotates and lowers the attachment to become a bucket. Which allows you to scoop material up, it then rotates and raises to become a spreader/feeder. The side flow bucket has three orbit motors, one to run the beater bar which helps to prevent material bridging and two to operate the flexible track that sends the material out the right or left side opening.
Specifications
- Overall Width: 82”
- Overall Height: 30″
- Overall Depth: 42″
- Struck Capacity: 17.5 cu. ft
- Heaped Capacity: 21 cu. ft
- Belt Motors: 4.9 cu. in – Dual Motors
- Flow GPM: 15-20 GPM
- Belt Speed: Adjustable ( Dual Control Valves)
- Belt: 5/16″ thick, 2-Ply Asphalt Belt
- Hydraulic Couplers: Flat Face
- Hydraulic Hoses: 1/2″
- PSI Min/Max: 2,500
- Bearings: 1″ Pillow Block (2)
- Cutting Edge: 5/8″ x 6
- Mounting Plate: 5/16″
- Tensioners: Manually Adjustable ( 4) locations
- Bucket thickness: 3/16″
- Wear Bars: 3/8″
- Weight: 1000LBS
