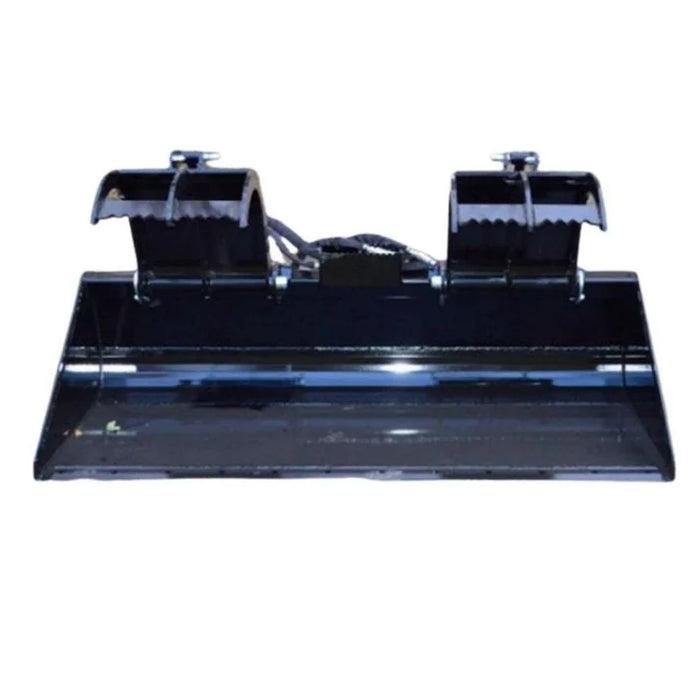

Top Dog Attachments Heavy Duty Low Profile Bucket with Grapple

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

Part #

• 60” #9033270

• 68” #9033271

• 72” #9033267

• 78” #9033272

• 80” #9033273

• 84” #9033274

Overall Width

• 60”, 68”, 72”, 78”, 80” & 84”

Overall Height – Closed

• 28½”

Overall Depth

• 38¼”

Grapple Opening

• 35½”

Depth of Bucket

• 34

Main Body Thickness

• 3/16”

Side Cutting Edge

• 3/8” Grade 50

Wear Bars

• 1/2” Grade 50 – 10” Wide

Mounting Plate

• 5/16” HR Steel

Cutting Edge

• 3/4” x 6”

Grapple Arms

• 1/2” Grade 50 – Laser Cut

Cylinders

• 2” x 8” Welded

Hydraulic Couplers

• Flat Face

Hydraulic Hoses

• 3/8”

PSI Max

• 3,000 PSI

Pivot Points

• Grease Zerks

Struck Capacity (cu. ft.)

• 60” (13.2)

• 68” (15)

• 72” (15.9)

• 78” (17.5)

• 80” (17.75)

• 84” (18.5)

Heaped Capacity (cu. ft.)

• 60” (15.8)

• 68” (18)

• 72” (19)

• 78” (20.5)

• 80” (21.2)

• 84” (22.25)

Weights (lbs.)

• 60” (827)

• 68” (867)

• 72” (872)

• 78” (917)

• 80” (952)

• 84” (972)

Overall Height – Open

• 41½”
