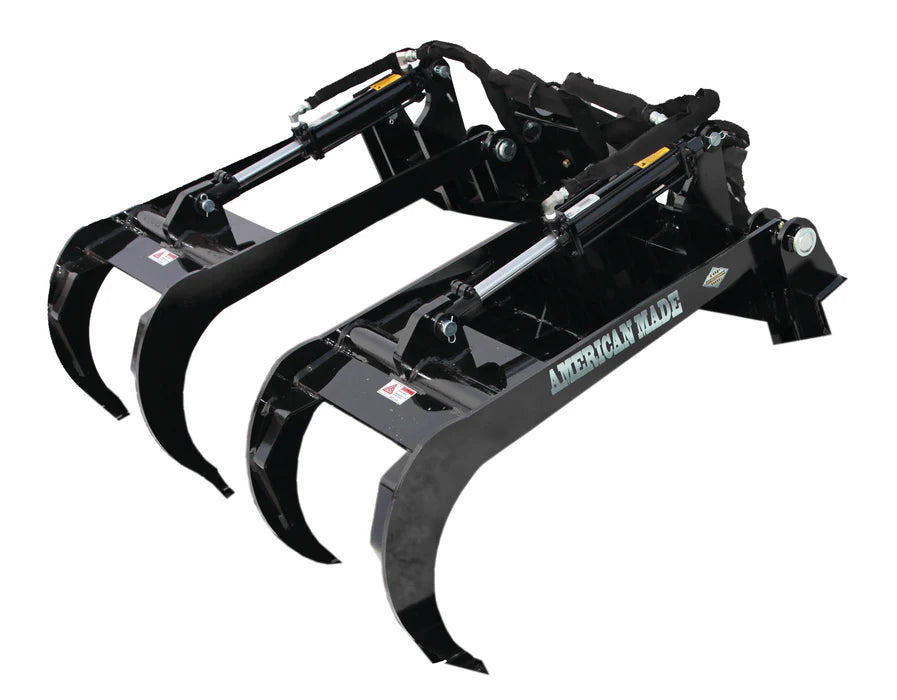

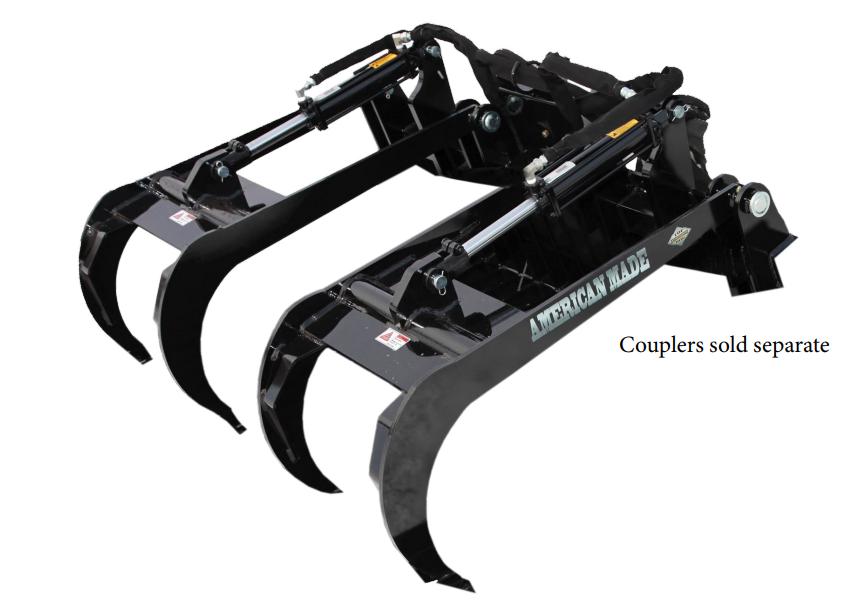

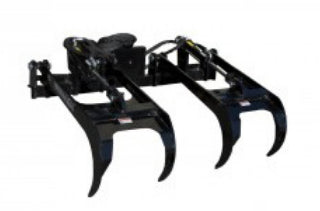

Top Dog Attachments Weld On Grapple
Original price
$1,786.00
-
Original price
$1,786.00
Original price
$1,786.00
$1,786.00
-
$1,786.00
Current price
$1,786.00
For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.
American-Made, Durable, and Versatile
The Top Dog Attachments Weld On Grapple. This grapple is designed with high-quality GR-50 steel. This attachment comes fully assembled with hydraulics and hoses, which makes for an easy and quick installation process. We recommend welding this onto a tube that is at least 3" X 3" in size. Make sure to weld at each ear location, on top and bottom of the angle iron.
Here are the key dimensions of the Weld On Grapple:
- Overall Depth: 36"
- Width: 59.5"
- Inside Depth: 41.5"
- Weight: 342 LBS
- Cylinders: 2" x 8" Tie Rod Cylinders
- Max PSI: 3000 PSI
- Steel: GR50
- Arm Plate thickness: 1/2"
