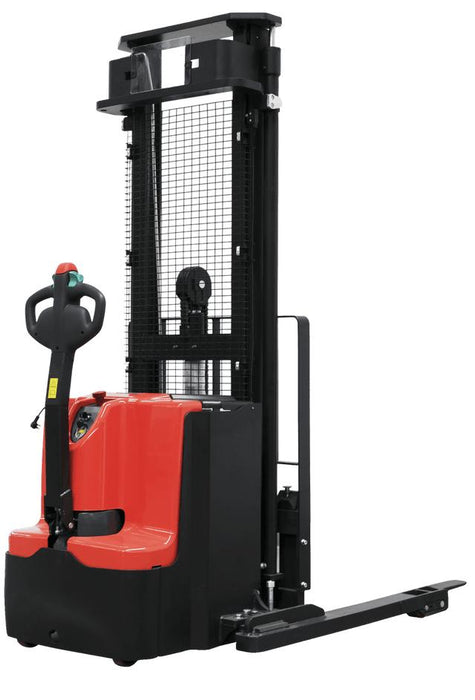

Ballymore Fully Powered Straddle Stacker Lift Truck - 3500 Lb. Capacity - 157" Lift (BALLYPAL35TSL157)
by Ballymore
Original price
$11,975.00
-
Original price
$11,975.00
Original price
$11,975.00
$11,975.00
-
$11,975.00
Current price
$11,975.00
For quotes, add products to your quote request with the Add to Quote button, or call (888) 240-7247 or email sales@ironforgeindustrial.com.
Capable of lifting up to 3,500 lbs to a maximum height of 157 inches, this versatile machine features adjustable 45-inch forks and an adjustable straddle base, accommodating various skid widths and pallet sizes. Powered by a robust 24V/2,705 Ah battery with a built-in charger, it ensures long-lasting performance and easy recharging. The stacker boasts a rugged steel chassis with a powder-coated finish for durability, while its proportional lifting and mesh screen enhance safety and visibility. Heavy-duty wheels enable smooth transportation, and the unit operates without cords or gas fumes, making it ideal for indoor use.
Standard Features
- Proportional Lifting Allows For Efficient And Safe Lifting Of Nay Product At Any Lift Speed.
- State Of The Art Components
- Mesh Protection For Safety As Well As Great Visibility During Operation
- Robust Chassis And Thick Apron Protect The Truck And Its Components
- Three Stage Mast
Specifications
- Assembled L X W X H: 82 x 54 x 75
- Category: Material Handling Equipment
- Collapsed Height (Nested): 75
- Color: Gray
- Eligible for UPS: No
- Entrance Chain: No
- Extended Mast Height: 176
- Final Weight: 3371
- Fork Length: 45
- Fork Width: 4.7
- Free Lift Height: 52
- Freight Class: 175
- Height Lowered: 2
- Height of Tiller in Drive: 56
- Lift Height: 52
- Lift Height Min: 157
- Lockstep Type: N/A
- Lowered Mast Height: 75
- Overall Length: 82
- Overall Packaging Height: 80
- Overall Packaging Length: 84
- Overall Packaging Width: 54
- Overall Width: 46" to 58"
- Power - Batteries: 24V
- Recommended Freight Method: ABF
- Shipping Dims. LxWxH: 84 x 54 x 80
- Shipping Weight: 3371
- Skid Dims: 84 x 54 x 80
- Skid Height: 80
- Skid Length: 84
- Skid Weight: 108
- Skid Width: 54
- Sub: 1.00
- Subcategory/Type: ADJUSTABLE PALLET STACKERS
- Tread: N/A
- Weight Capacity: 3500
