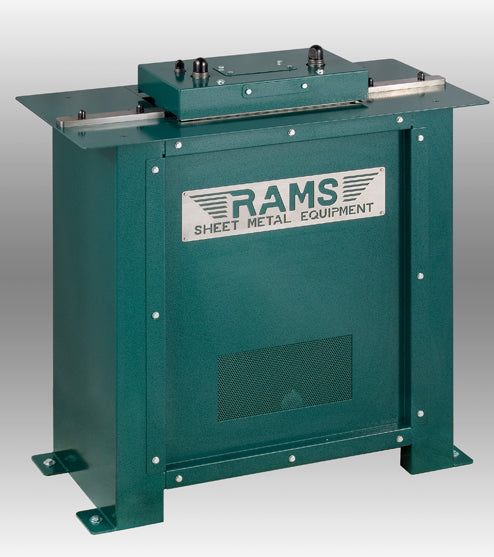

RAMS-2006 20ga Pittsburgh Machine

For quotes, add products to your quote request with the Add to Quote button, or call (888) 240-7247 or email sales@ironforgeindustrial.com.

CAPACITY: 20 GA. MAX. – 26 GA. MIN. MILD STEEL

APPROX. SPEED: 25 FPM

DIMENSIONS: 36" LONG x 17.5" WIDE x 34" HIGH

APPROX. WEIGHT: 350 LBS

This unit comes with a 1 HP electric motor, 110-115V single phase. We use Torrington Needle Bearings and hardened steel components throughout, (62 Rockwell). The cabinet is heavy gauge steel with a Hammertone Green Finish.

Maintenance & Operating Instructions

Standard Version / Square Drive Version (Parts Diagram)

Marketing Flyer

Optional profiles for outboard shafts
Double Seam Rolls	Drive Cleat Rolls	Right Angle Rolls
