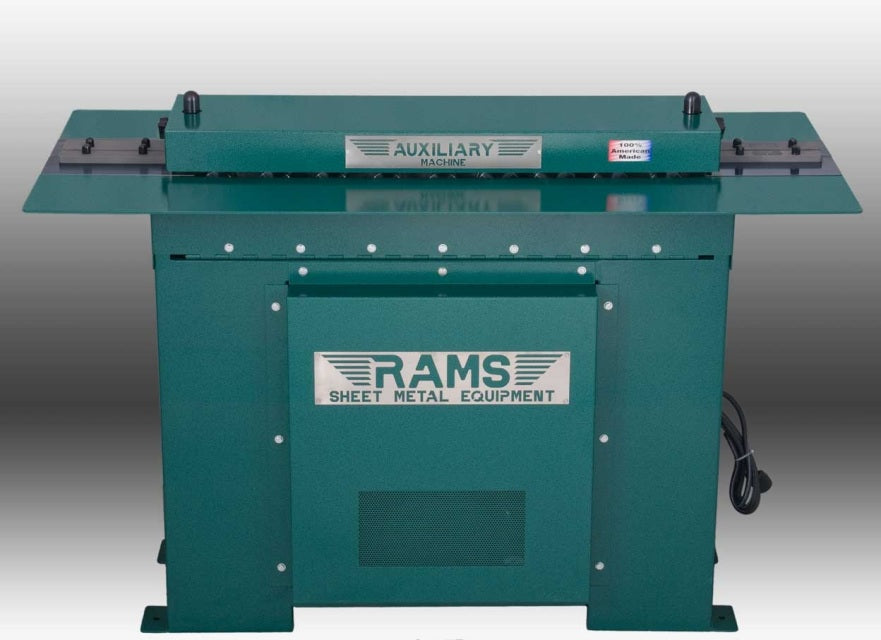

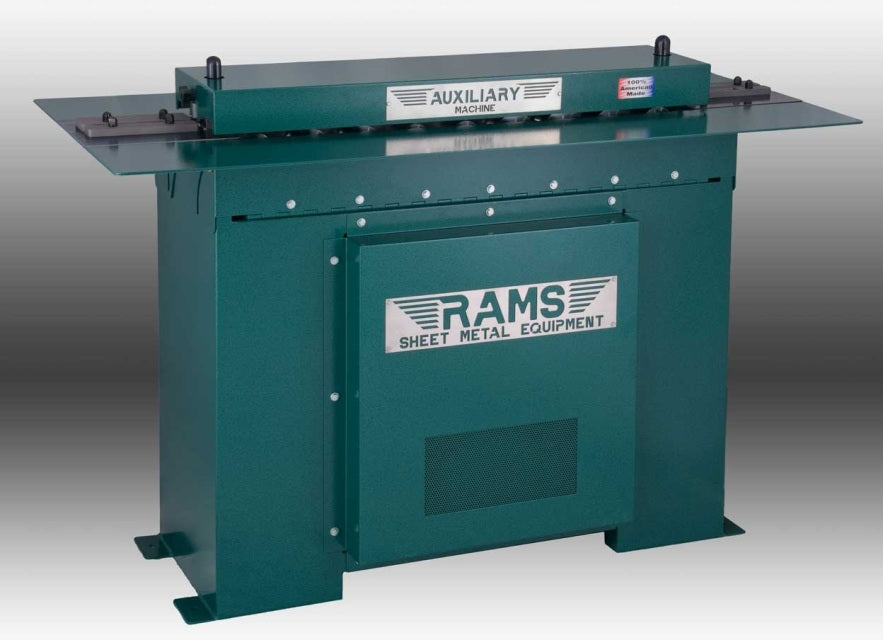

RAMS-2014 Auxiliary Machine

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ifindustrial.com.

CAPACITY: 20 GA. MAX. – 28 GA. MIN. MILD STEEL

APPROX. SPEED: 40 FPM

DIMENSIONS: 63" LONG x 26" WIDE x 34" HIGH

APPROX. WEIGHT: 600 LBS

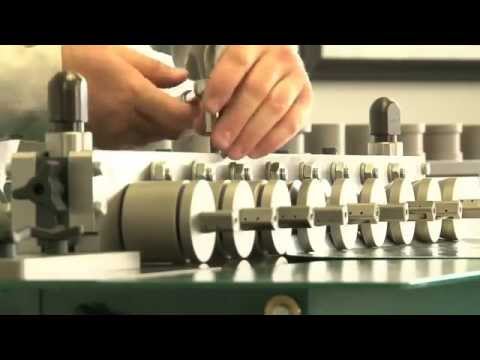

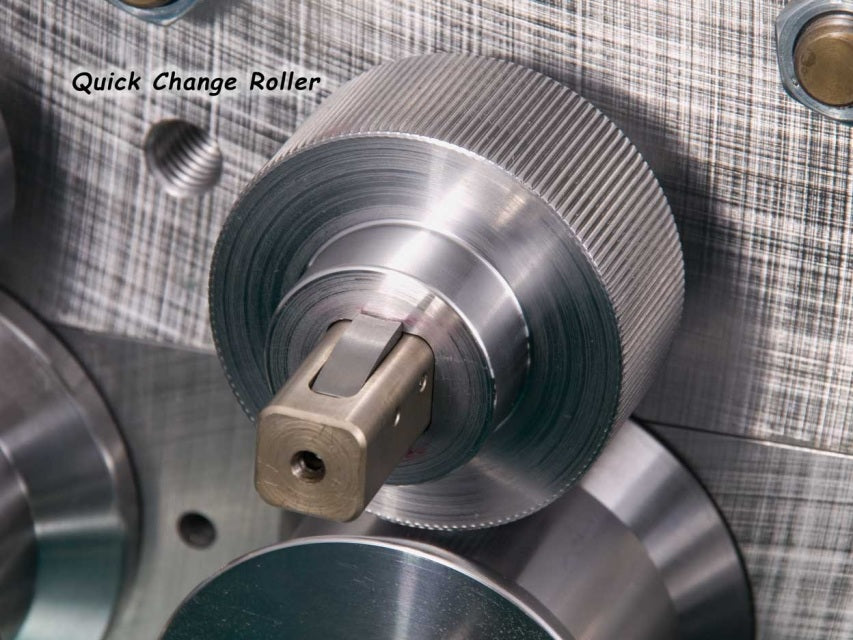

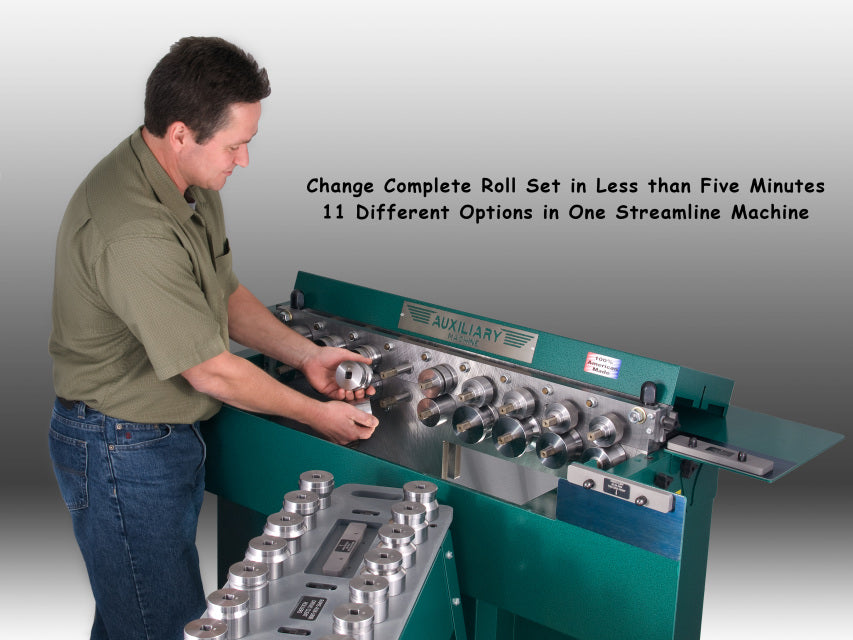

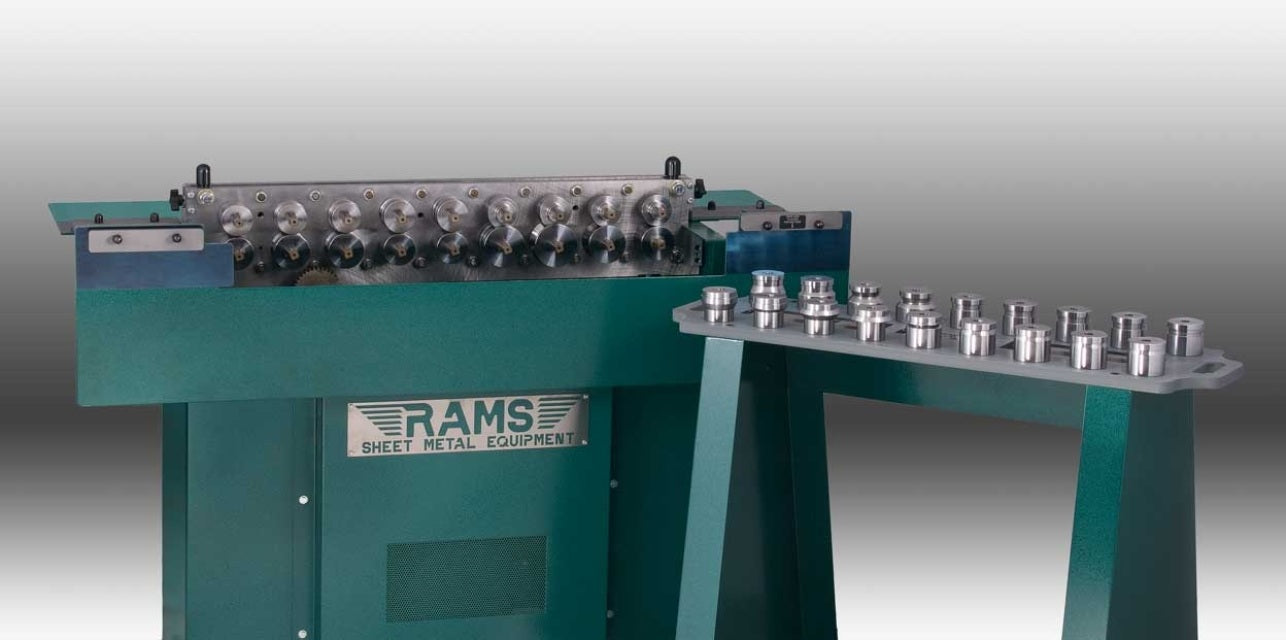

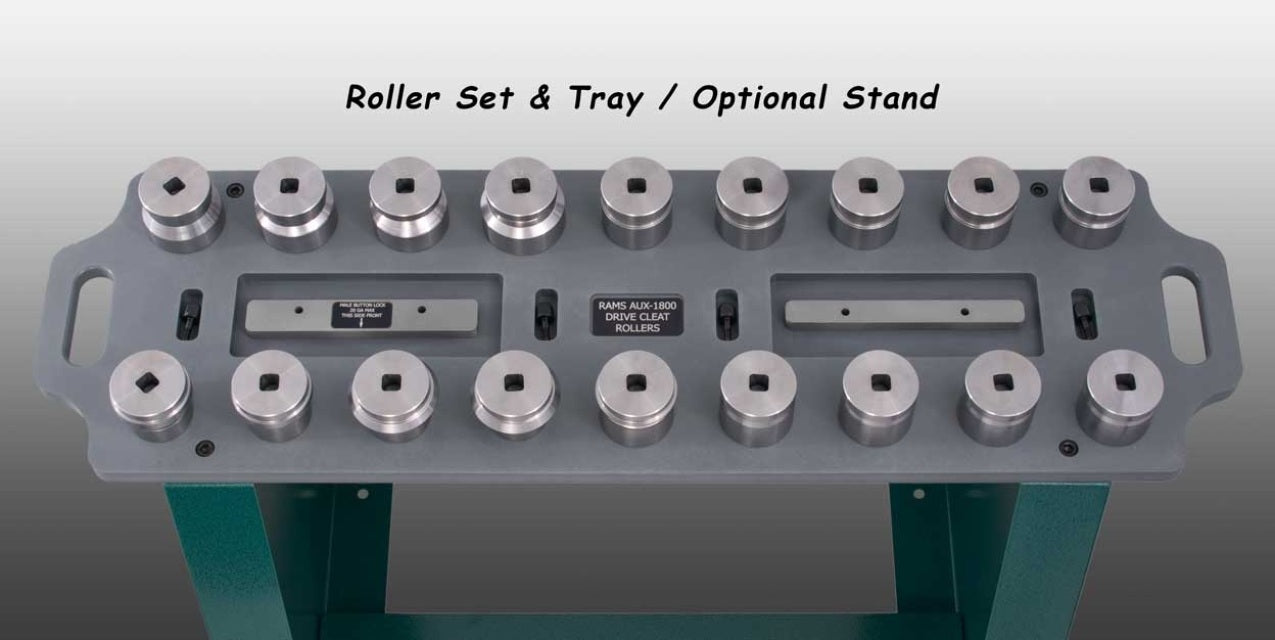

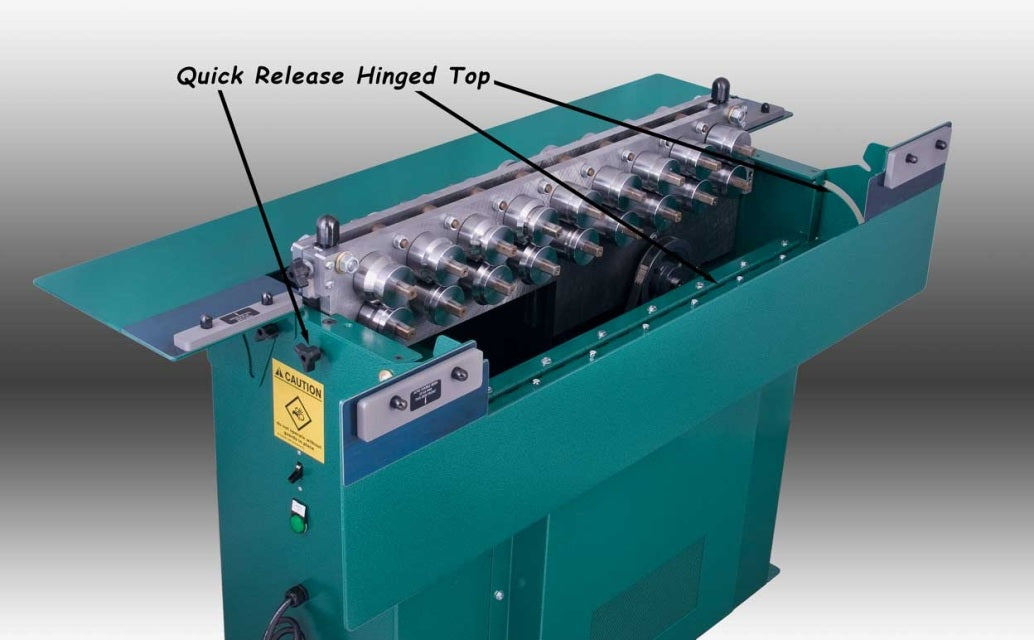

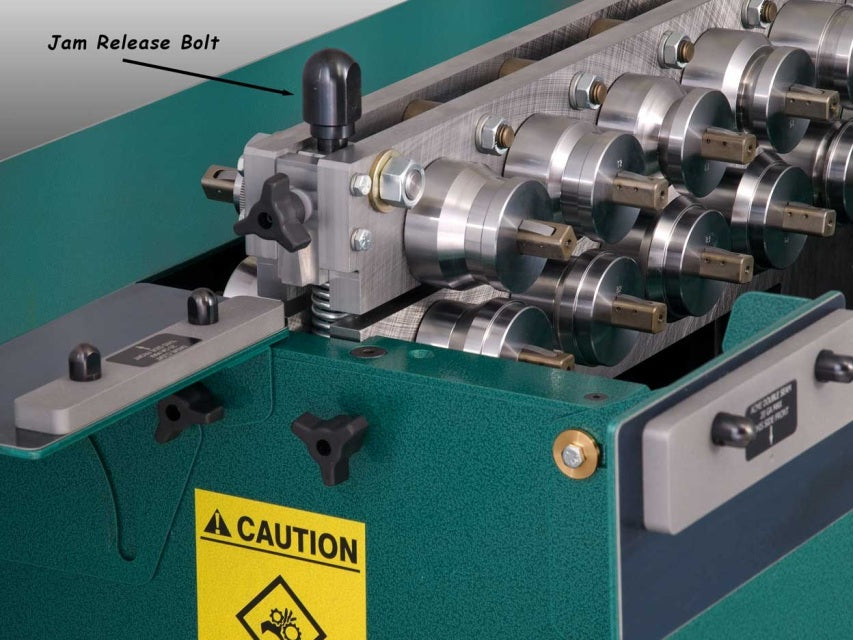

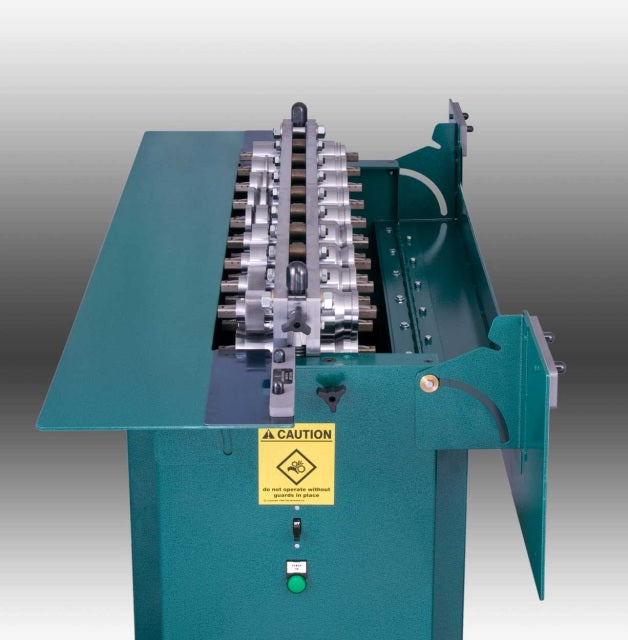

The RAMS 2014 Auxiliary Machine is like no other machine available on the market today. Features a 5 HP motor 208-230V single phase. It was designed specifically for ease of use, flexibility and the convenience of the end user. Key features include: hinged table top and square drive shafts which allows easy access to change out a complete roll set in less than five minutes, quick change tooling which requires no keys or tools, and quick jam clearing. This machine can convert from a button lock to an Acme & Drive Cleat machine instantly. Please see slide show for more details.

Maintenance & Operating Instructions

Parts Diagram

Marketing Flyer
