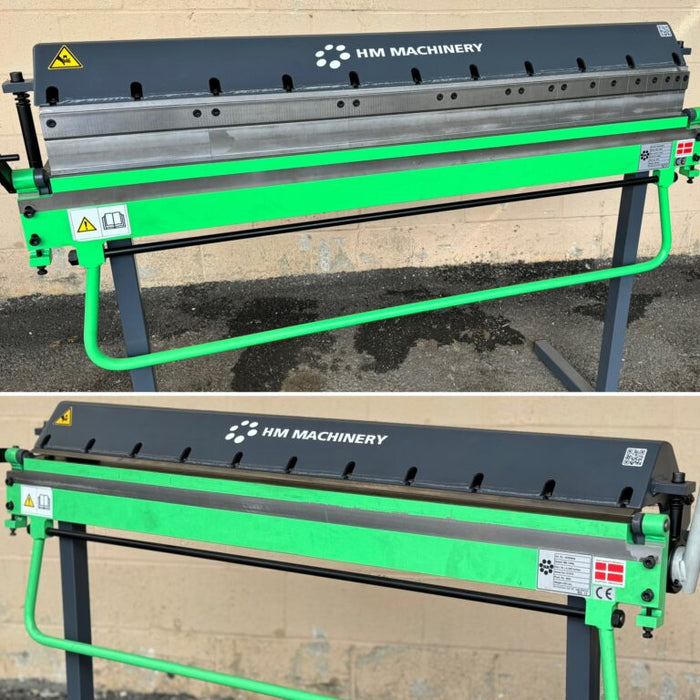

Tin Knocker HM Machinery 1300 2n1 Combo Brake

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ironforgeindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

The HM Machinery 1300 2n1 Combo Brake is the perfect way to get maximum versatility in a manual brake. This combo package includes 2 different interchangeable tooling sections that can be easily swapped:

• Low Beam Straight Nose Bar for straight bends up to 135 degrees
• Segmented Tall Nose Bar for box and pan and other complex bends

To further increase its versatility, contact us when purchasing to add these optional accessories:

• Manual Backgauge
• Rear Support Table
• Roller Shear

Watch the video to learn about swapping tooling and optional accessories available for the 1300 2n1 Combo Brake

Specifications

• Maximum Bend Length: 53”
• Maximum Material Capacity: 20-Gauge Mild Steel
• Maximum Opening (straight tooling): 1.5”
• Maximum Box/Pan Height (segmented tooling): 2.75”
• Maximum Folding Angle: 135 Degrees (straight tooling), 95 Degrees (segmented tooling)
• Approx. Shipping Dimensions: 60” x 20” x 42”
• Approx. Shipping Weight: 275lbs.
