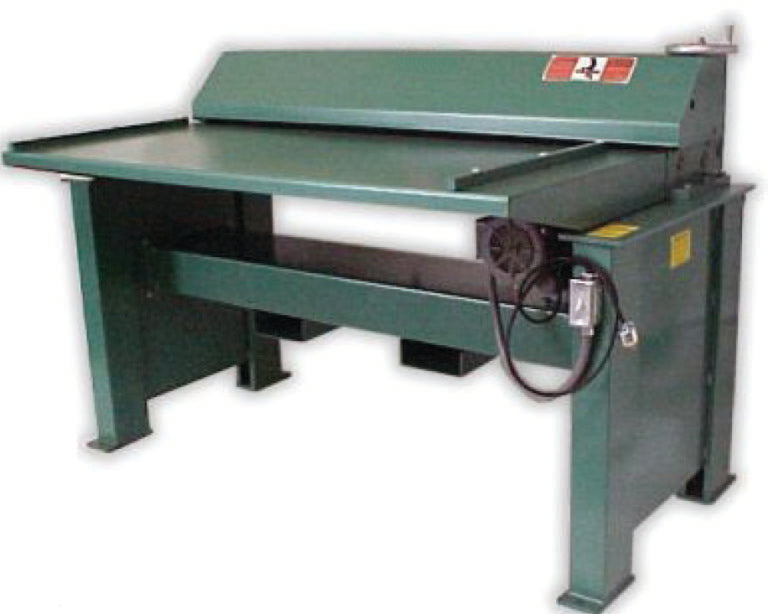

Tin Knocker TK 1660 Duct Beader

For Quotes, simply add desired products to your quote request with the Add to Quote button. You can view your full request at any time by selecting the View Current Quote Request button on the sidebar. If you need assistance please call us at (888) 240-7247 or email sales@ironforgeindustrial.com.

Tin Knocker, your source for quality, affordable sheet metal working machinery.

STOP CROSS BREAKING.  SAVE TIME AND MONEY… with this 60″ x 16 Ga. adjustable beader. Produce SMACNA approved beads in a fraction of the time it takes to cross brake. A one man operation, this heavy duty beader comes with five (5) sets of bead tooling that can be located anywhere over the 60″ working length. Tooling, if broken or damaged, is replaceable without the requirement of replacing an entire cross shaft. Beads are adjustable in depth to 3/16″ deep. Powered exit support roll to ensure no material hang-up. No one offers more features.  THE BEST VALUE IN A 60″ BEADER IN THE USA.

TK 1660 Duct Beader Manual

Specifications

• Weight: 1750 lbs.
• Dimensions: 80 x 43 x 34 in
• Capacity: 16 Ga. Mild Steel (Galvanized) x 60″
• Motor: 1 H.P.,115v, Single Phase, 60 Hz Standard (230/1/50 available)
