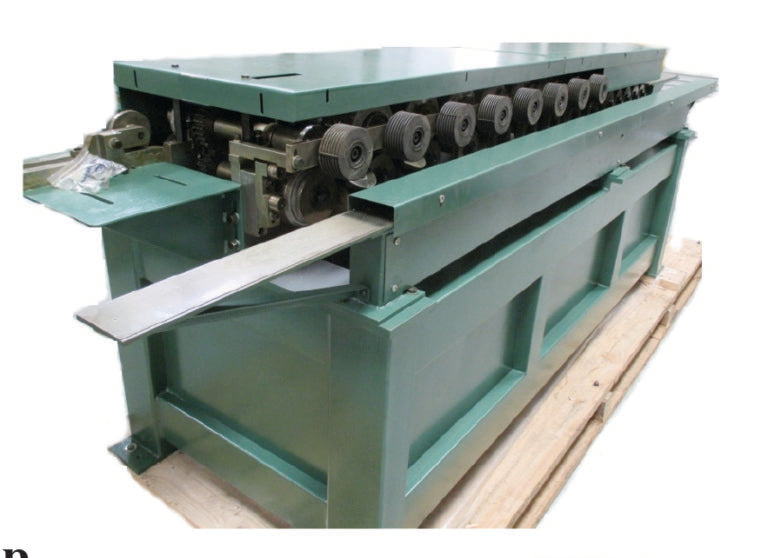

Tin Knocker TK T-D-P Roll Former (w/ TDP & Clip Rolls)
For quotes, add products to your quote request with the Add to Quote button, or call (888) 240-7247 or email sales@ironforgeindustrial.com.
Tin Knocker, your source for quality, affordable sheet metal working machinery.
(Produces either TDC or TDF flanges).
At last, an affordable, full service, high quality transverse duct connector machine. HERE’S THE BEEF! This 14 station roll former comes standard with TDC or TDF Rolls, Slitter and Clip Rolls outboard. This T-D-P roll former will roll sheet metal into leak proof, sealable TDC or TDF flanges at speeds of up to 50 fpm, automatically! Start saving time and money by forming your own TDC or TDF flanges – with their snap on corners – and eliminate spot welding altogether. Buyer must specify which set of transverse duct connector rolls is wanted on the machine (TDC or TDF). Slitting and Clip Rolls come on all TDP roll formers.
THERE IS NO GREATER VALUE IN A TDC OR TDF ROLL FORMER.
Specifications
- Weight: 3450 lbs
- Dimensions: 38 x 136.75 x 46 in
- Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
- Forming Sections: 14
- Shaft Diameter: 1.25″
- Passline: 38.625″
- Forming Speed: 50fpm
